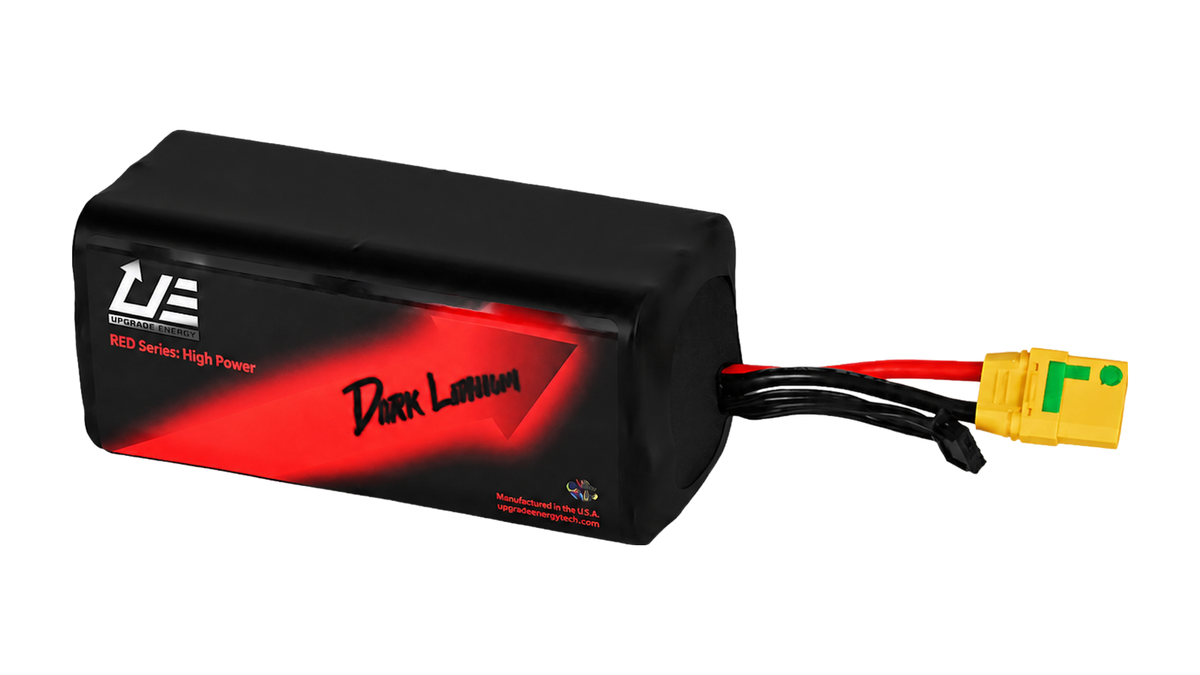

RED V4 6S3P 15Ah — High Power battery, original proportions, transparent background

RED V4 6S3P 15Ah

XT90S
$341.00
Skip to product information
RED V4 6S3P 15Ah — High Power battery, original proportions, transparent background
RED V4 6S3P 15Ah

RED V4 6S3P 15Ah
RD0603-219040a
$341.00

Made to order.
Connector Type

RED V4 6S3P High Power battery pack with 15 Ah capacity and 21.6 V nominal voltage.

This product may be manufactured using Amprius SA124, Tenpower 50XG, or Reliance RS50 cells, depending on availability at the time of production.

Specifications

Configuration 6S3P
Cell Amprius SA124 / Tenpower 50XG / Reliance RS50
Cell format 21700
Form factor Standard
Capacity 15 Ah
Nominal energy 324 Wh
Nominal voltage 21.6 V
Maximum charge voltage 25.2 V
Minimum pack voltage 15.3 V
Recommended landing voltage 16.2 V
Continuous power 1036.8 W
Continuous current 60 A
10-second burst power 3240 W
10-second burst current 150 A
2-minute burst current 105 A
Charge current 15 A (1C)
Dimensions (L × W × H) 15.6 × 7.2 × 7.2 cm
Pack weight 1400 g
Energy density 231.43 Wh/kg
Balance connector JST-XHP-7
Maximum pack temperature 80 °C

Connector options

  • XT60 — RD0603-216040a
  • XT90S — RD0603-219040a

Observe both the power and current limits. Use a suitable balance charger and monitor individual series-group voltages. Pack voltage alone does not verify every series cell group remains within its limits. The 80 °C maximum is a pack temperature limit, not an ambient-temperature rating or a charging temperature allowance.

Documents
Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.
