RED 4S2P 10Ah — battery pack, alternate view

RED V4 4S2P 10Ah

XT90S
$152.00
Skip to product information
RED 4S2P 10Ah — battery pack, alternate view
RED V4 4S2P 10Ah

RED V4 4S2P 10Ah
RD0402-219040a
$152.00

Made to order.
Connector Type

RED V4 4S2P High Power battery pack with 10 Ah capacity and 14.4 V nominal voltage.

This product may be manufactured using Amprius SA124, Tenpower 50XG, or Reliance RS50 cells, depending on availability at the time of production.

Specifications

Configuration 4S2P
Cell Amprius SA124 / Tenpower 50XG / Reliance RS50
Cell format 21700
Form factor Standard
Capacity 10 Ah
Nominal energy 144 Wh
Nominal voltage 14.4 V
Maximum charge voltage 16.8 V
Minimum pack voltage 10.2 V
Recommended landing voltage 10.8 V
Continuous power 649.8 W
Continuous current 47.5 A
10-second burst power 1440 W
10-second burst current 100 A
2-minute burst current 70 A
Charge current 10 A (1C)

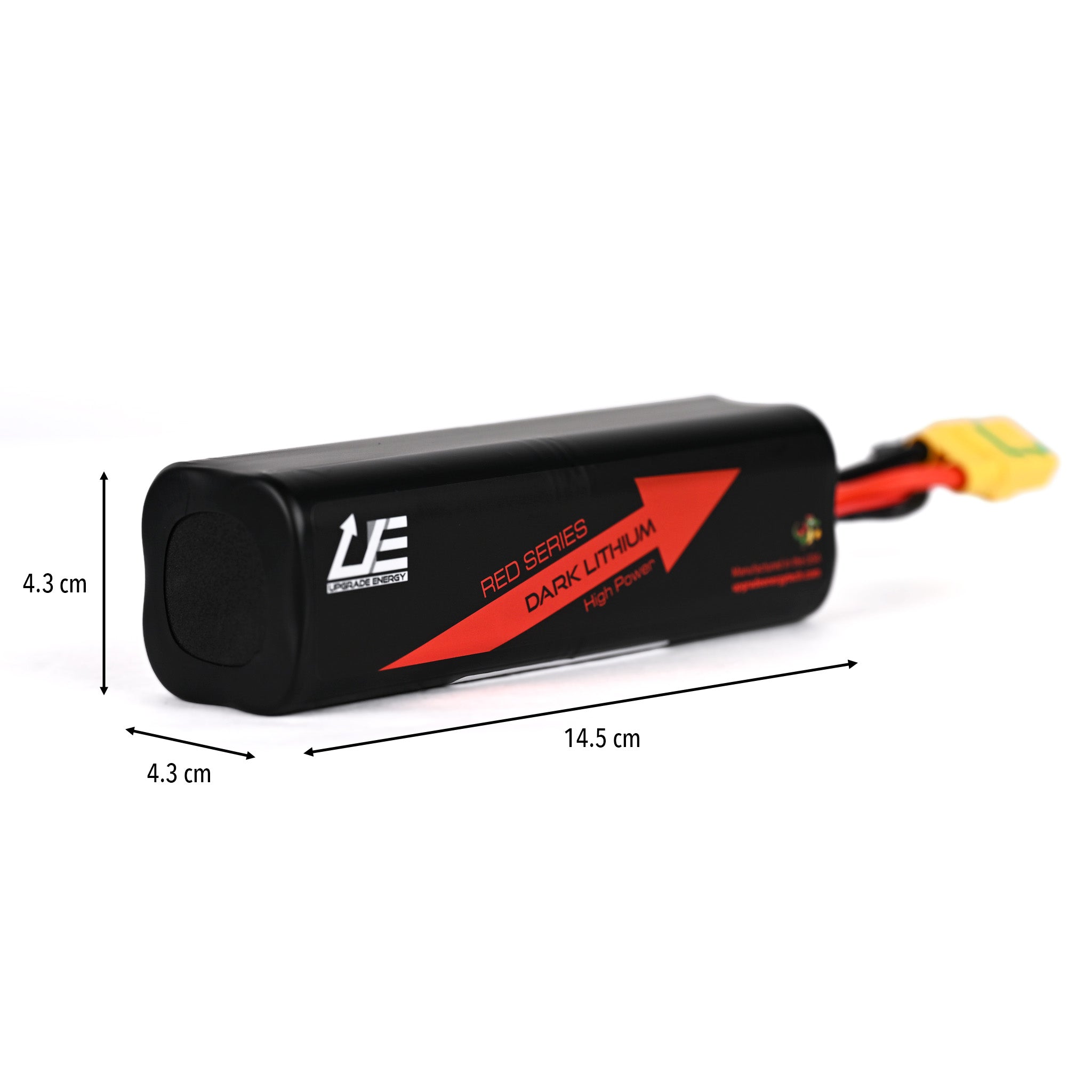

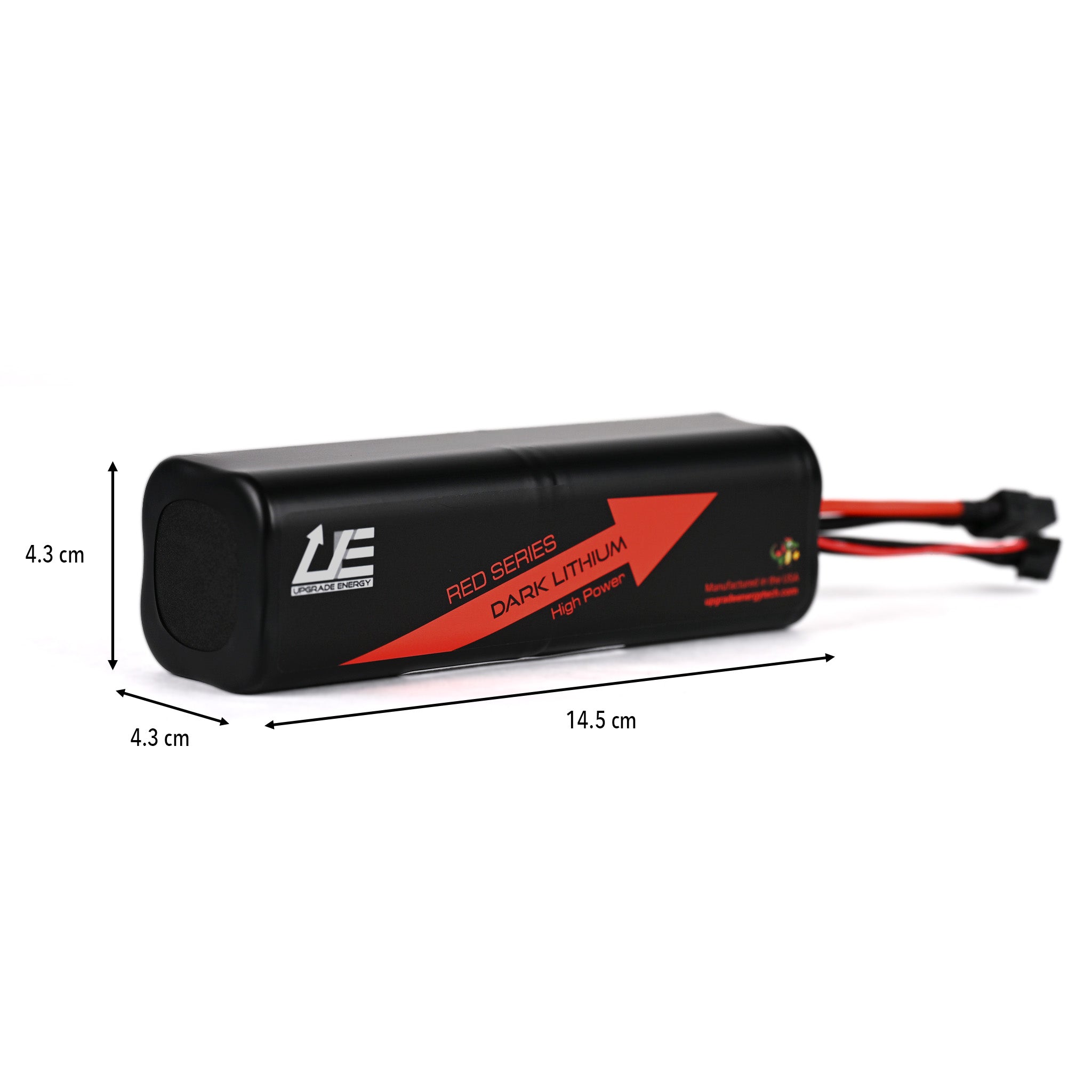

Dimensions (L × W × H) 14.5 × 4.3 × 4.3 cm
Pack weight 567 g
Energy density 253.97 Wh/kg
Balance connector JST-XHP-5
Maximum pack temperature 80 °C

Connector options

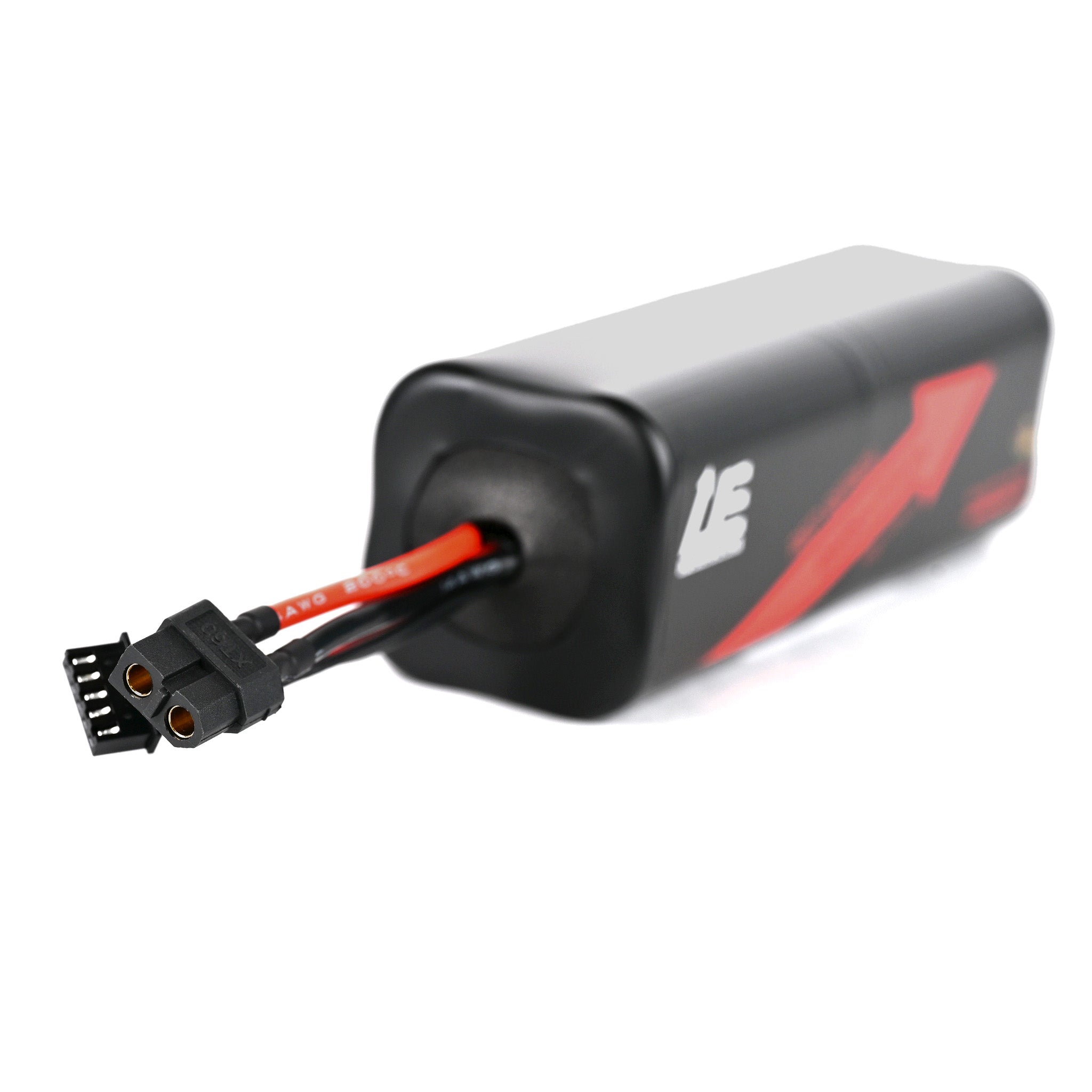

  • XT60 — RD0402-216040a

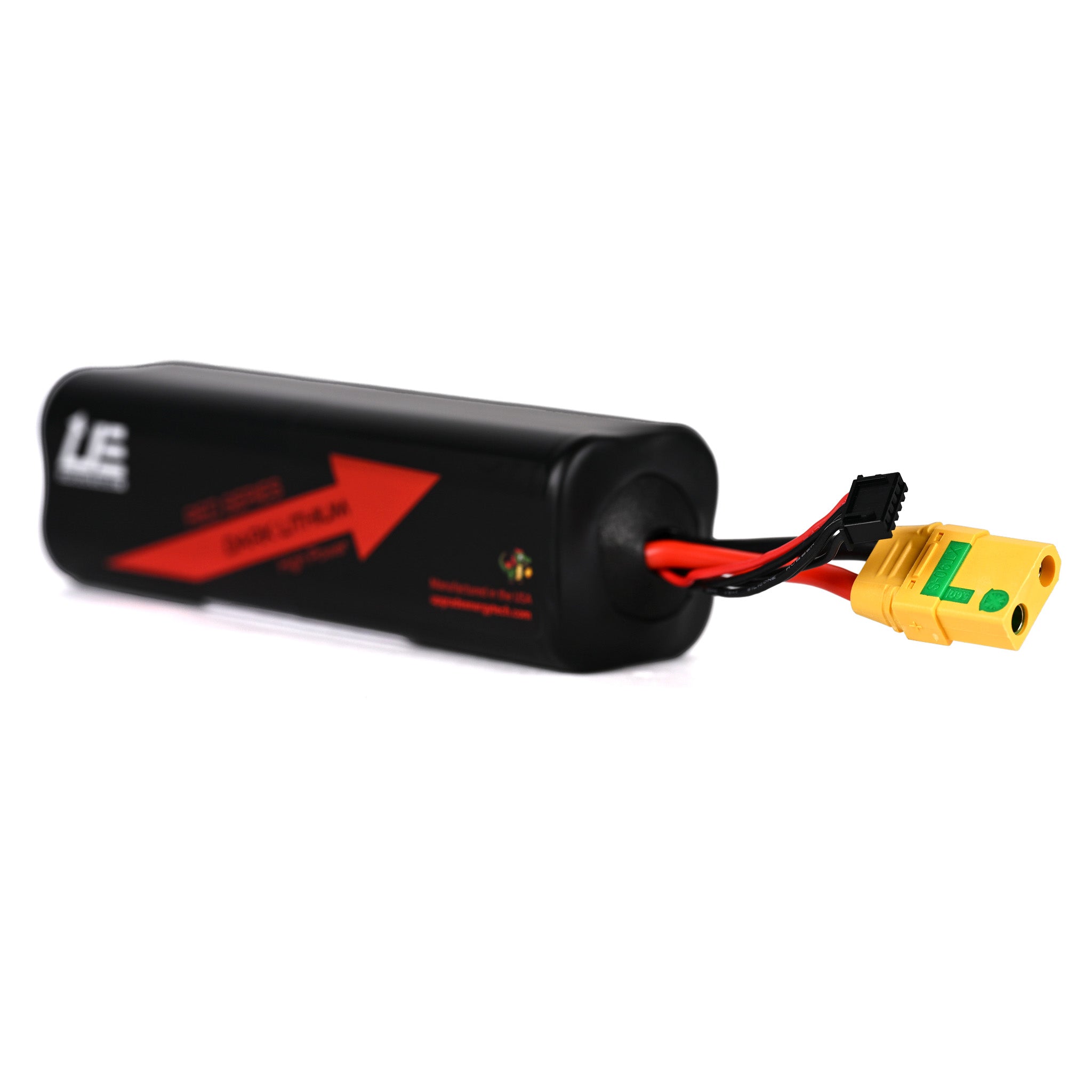

  • XT90S — RD0402-219040a

Observe both the power and current limits. Use a suitable balance charger and monitor individual series-group voltages. Pack voltage alone does not verify every series cell group remains within its limits. The 80 °C maximum is a pack temperature limit, not an ambient-temperature rating or a charging temperature allowance.

Documents
Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.
