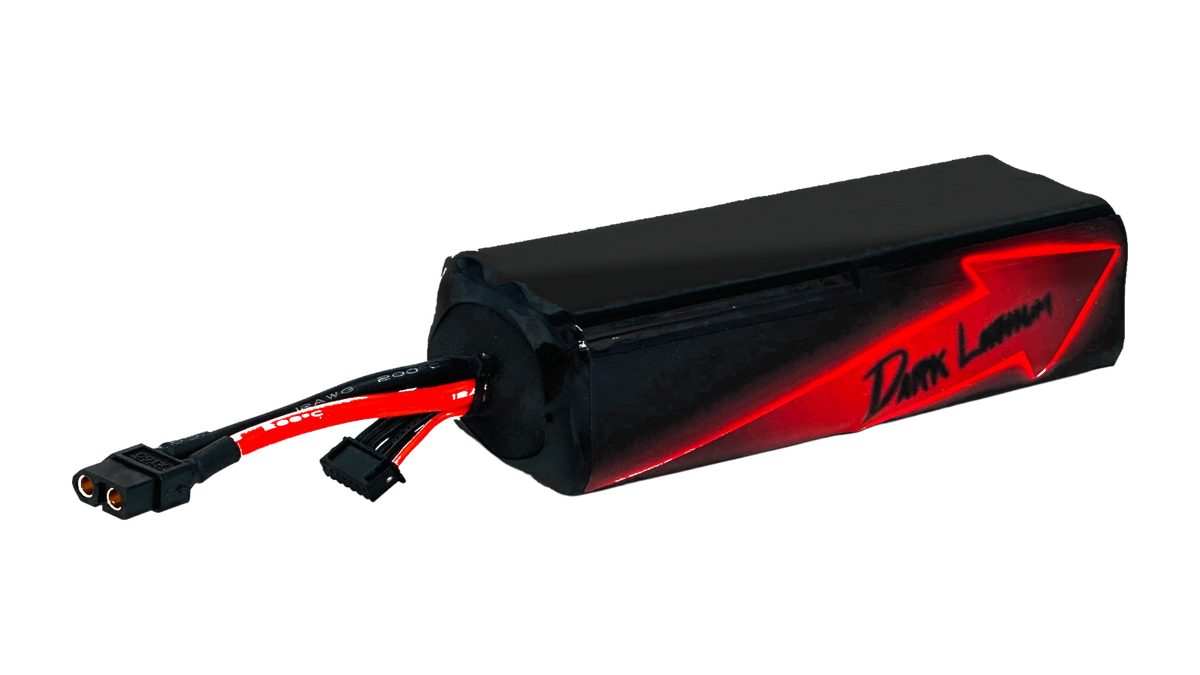

RED V3 6S2P High Power battery pack built with Molicel P30B cells, with 6 Ah capacity and 21.6 V nominal voltage.
| Configuration | 6S2P |
|---|---|
| Cell | Molicel P30B |
| Cell format | 18650 |
| Form factor | Standard |
| Capacity | 6 Ah |
| Nominal energy | 129.6 Wh |
| Nominal voltage | 21.6 V |
| Maximum charge voltage | 25.2 V |
| Minimum pack voltage | 15.3 V |
| Recommended landing voltage | 16.2 V |
| Continuous power | 299.64 W |
| Continuous current | 16.32 A |
| 10-second burst power | 829.44 W |
| 10-second burst current | 38.4 A |
| 2-minute burst current | 26.88 A |
| Charge current | 4.8 A (0.8C) |
| Dimensions (L × W × H) | 14.4 × 5.7 × 3.9 cm |
| Pack weight | 578 g |
| Energy density | 224.22 Wh/kg |
| Balance connector | JST-XHP-7 |
| Maximum pack temperature | 80 °C |
Observe both the power and current limits. Use a suitable balance charger and monitor individual series-group voltages. Pack voltage alone does not verify every series cell group remains within its limits. The 80 °C maximum is a pack temperature limit, not an ambient-temperature rating or a charging temperature allowance.
