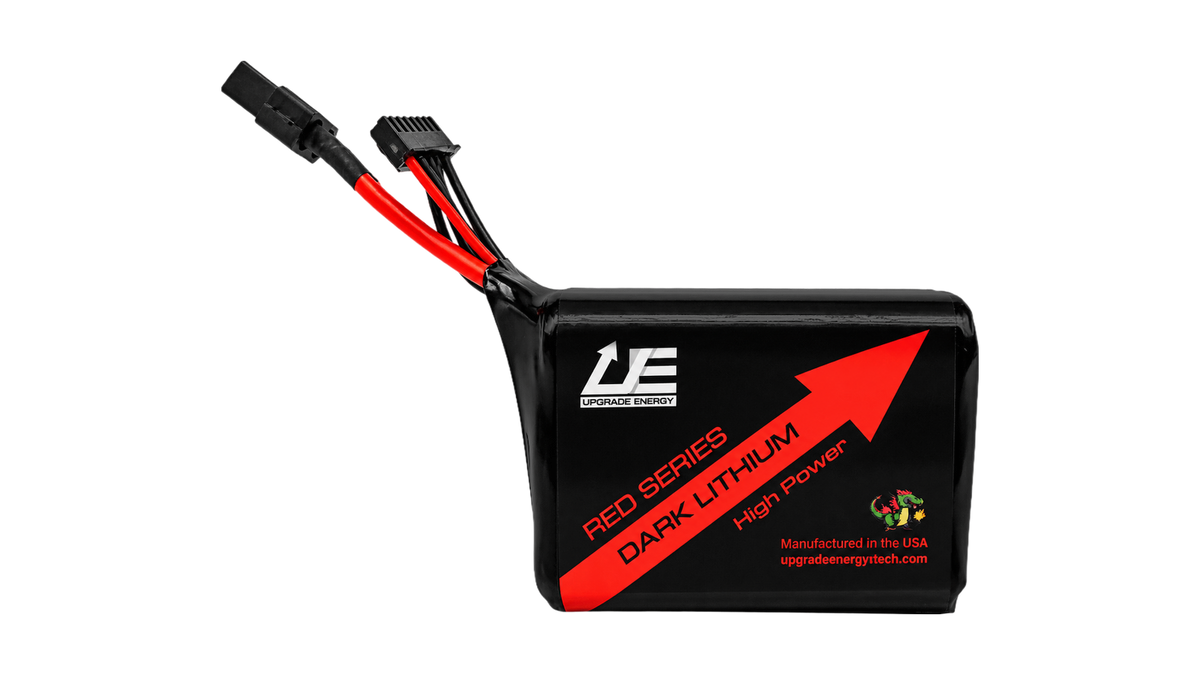

RED V3 6S1P 3Ah Molicel P30B — High Power battery, original proportions, transparent background

RED V3 6S1P 3Ah Molicel P30B

$90.00
Skip to product information
RED V3 6S1P 3Ah Molicel P30B — High Power battery, original proportions, transparent background
RED V3 6S1P 3Ah Molicel P30B

RED V3 6S1P 3Ah Molicel P30B
RD0601-186000a
$90.00

Made to order.

RED V3 6S1P High Power battery pack built with Molicel P30B cells, with 3 Ah capacity and 21.6 V nominal voltage.

Specifications

Configuration 6S1P
Cell Molicel P30B
Cell format 18650
Form factor Standard
Capacity 3 Ah
Nominal energy 64.8 Wh
Nominal voltage 21.6 V
Maximum charge voltage 25.2 V
Minimum pack voltage 15.3 V
Recommended landing voltage 16.2 V
Continuous power 207.36 W
Continuous current 9.6 A
10-second burst power 414.72 W
10-second burst current 19.2 A
2-minute burst current 13.44 A
Charge current 2.4 A (0.8C)
Dimensions (L × W × H) 6.6 × 3.8 × 5.6 cm
Pack weight 282 g
Energy density 229.79 Wh/kg
Balance connector JST-XHP-7
Maximum pack temperature 80 °C

Connector options

  • XT60 — RD0601-186000a

Observe both the power and current limits. Use a suitable balance charger and monitor individual series-group voltages. Pack voltage alone does not verify every series cell group remains within its limits. The 80 °C maximum is a pack temperature limit, not an ambient-temperature rating or a charging temperature allowance.

Documents
Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.
