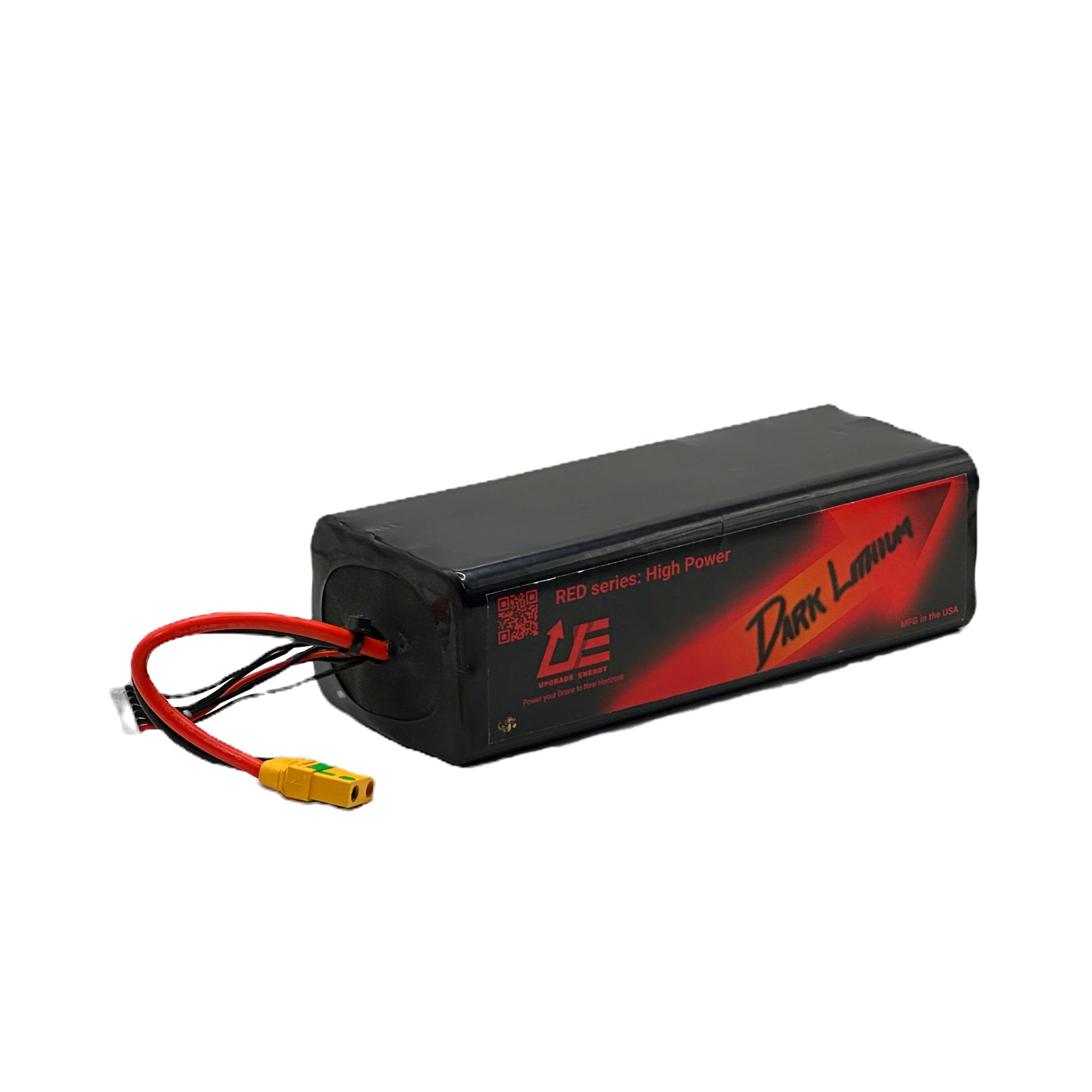

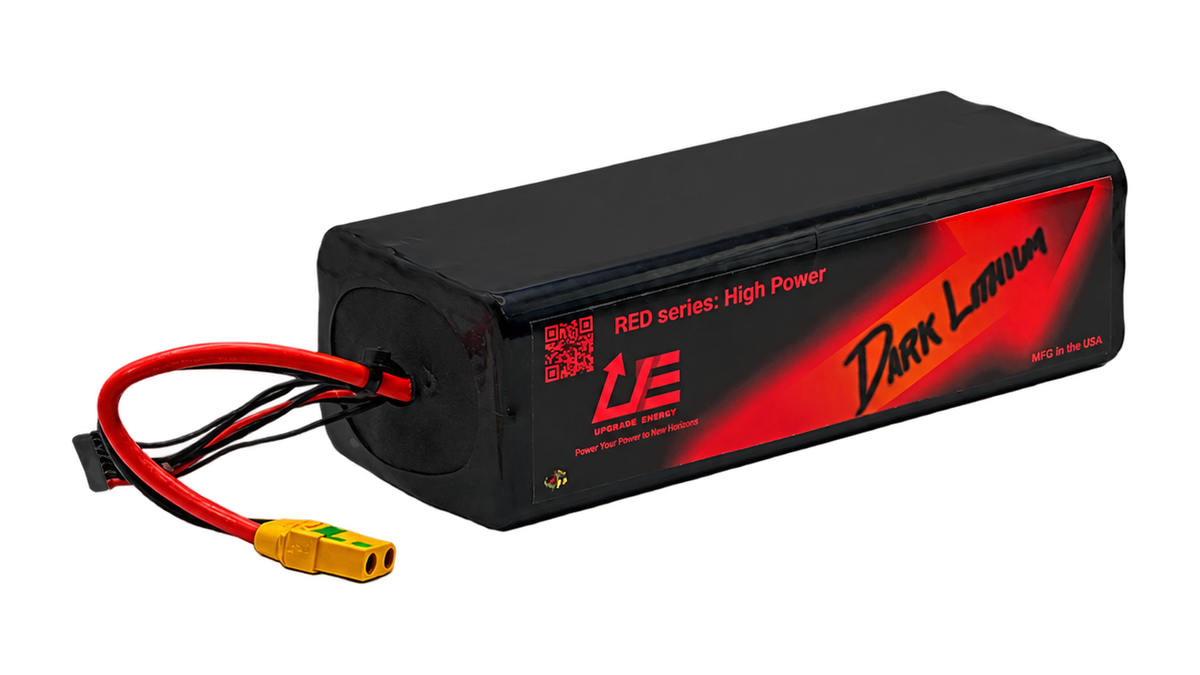

RED V3 6S6P 30Ah Molicel P50B — High Power battery, black JST-XH balance connector, leads facing left

RED V3 6S6P 30Ah Molicel P50B

XT90S
$479.00
Skip to product information
RED V3 6S6P 30Ah Molicel P50B — High Power battery, black JST-XH balance connector, leads facing left
RED V3 6S6P 30Ah Molicel P50B

RED V3 6S6P 30Ah Molicel P50B
RD0606-219000a
$479.00

All products are made to order. Current lead time is 4-5 weeks. Orders over 15 quantity may take extra time to process.
Connector Type

RED V3 6S6P High Power battery pack built with Molicel P50B cells, with 30 Ah capacity and 21.6 V nominal voltage.

Specifications

Configuration 6S6P
Cell Molicel P50B
Cell format 21700
Form factor Standard
Capacity 30 Ah
Nominal energy 648 Wh
Nominal voltage 21.6 V
Maximum charge voltage 25.2 V
Minimum pack voltage 15.3 V
Recommended landing voltage 16.2 V
Continuous power 1095.12 W
Continuous current 78 A
10-second burst power 5184 W
10-second burst current 240 A
2-minute burst current 168 A
Charge current 24 A (0.8C)
Dimensions (L × W × H) 21.6 × 8.7 × 6.5 cm
Pack weight 2600 g
Energy density 249.23 Wh/kg
Balance connector JST-XHP-7
Maximum pack temperature 80 °C

Connector options

  • XT90S — RD0606-219000a
  • AS150 — RD0606-211500a

Use a suitable balance charger and monitor individual series-group voltages. Pack voltage alone does not verify every series cell group remains within its limits. The 80 °C maximum is a pack temperature limit, not an ambient-temperature rating or a charging temperature allowance.

Documents
Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.
