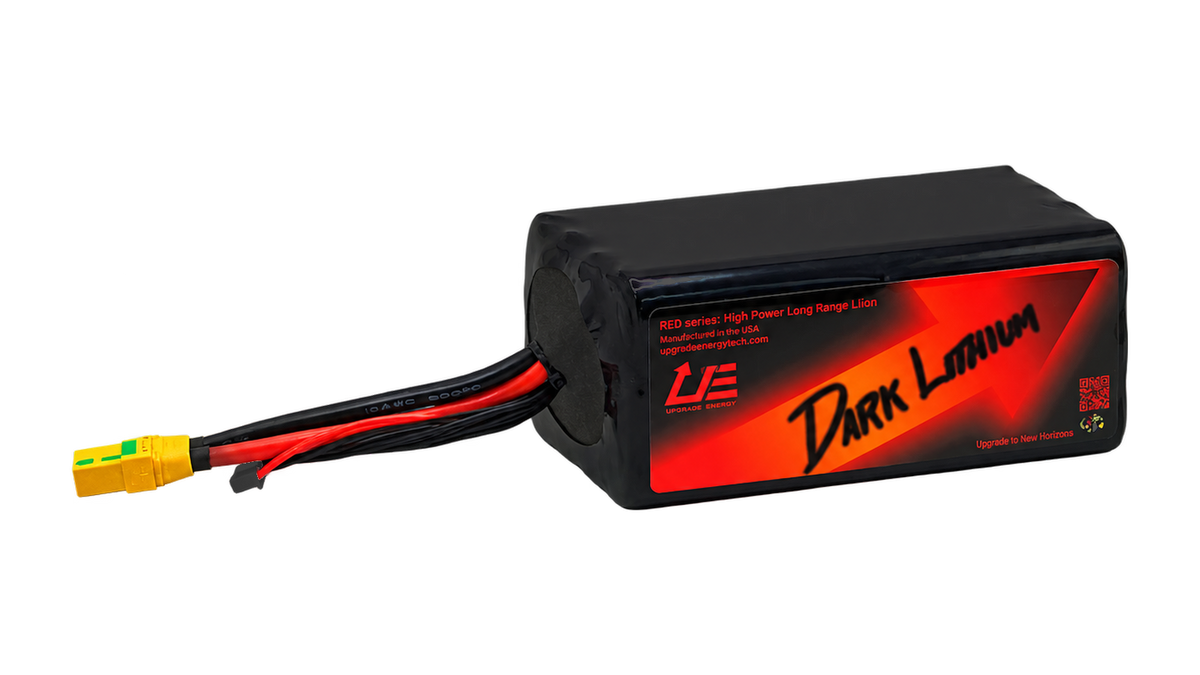

RED V3 6S4P 20Ah Molicel P50B — High Power battery, black JST-XH balance connector, leads facing left

RED V3 6S4P 20Ah Molicel P50B

$400.00
Skip to product information
RED V3 6S4P 20Ah Molicel P50B — High Power battery, black JST-XH balance connector, leads facing left
RED V3 6S4P 20Ah Molicel P50B

RED V3 6S4P 20Ah Molicel P50B
RD0604-219000a
$400.00

All products are made to order. Current lead time is 4-5 weeks. Orders over 15 quantity may take extra time to process.

RED V3 6S4P High Power battery pack built with Molicel P50B cells, with 20 Ah capacity and 21.6 V nominal voltage.

Specifications

Configuration 6S4P
Cell Molicel P50B
Cell format 21700
Form factor Standard
Capacity 20 Ah
Nominal energy 432 Wh
Nominal voltage 21.6 V
Maximum charge voltage 25.2 V
Minimum pack voltage 15.3 V
Recommended landing voltage 16.2 V
Continuous power 972 W
Continuous current 60 A
10-second burst power 3456 W
10-second burst current 160 A
2-minute burst current 112 A
Charge current 16 A (0.8C)
Dimensions (L × W × H) 15.6 × 8.7 × 6.5 cm
Pack weight 1800 g
Energy density 240 Wh/kg
Balance connector JST-XHP-7
Maximum pack temperature 80 °C

Connector options

  • XT90S — RD0604-219000a

Use a suitable balance charger and monitor individual series-group voltages. Pack voltage alone does not verify every series cell group remains within its limits. The 80 °C maximum is a pack temperature limit, not an ambient-temperature rating or a charging temperature allowance.

Documents
Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.
