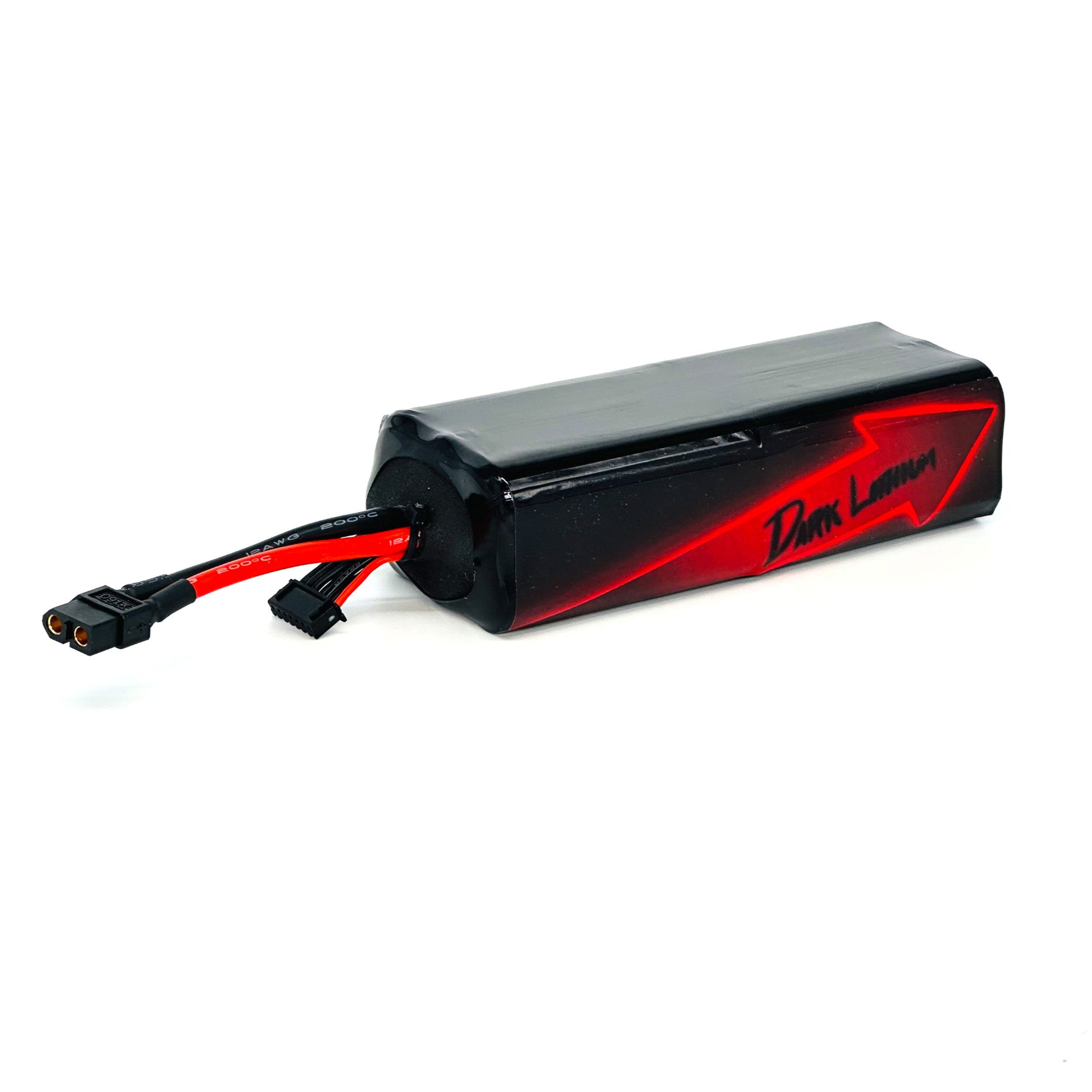

RED V3 6S2P 6Ah Molicel P30B

SKU: RD0602-186000a

$170.00

Experience unmatched flight performance with our RED V3 6S2P battery pack, engineered for demanding pilots requiring both high voltage and extended capacity. Built with premium Molicel P30B cells in a parallel configuration, this versatile powerhouse delivers consistent 800W discharge capability with 80A burst power while maintaining exceptional energy density at 216Wh/kg.

Perfect for heavy-lift cinematography, long-range missions, and aggressive flying with extended sessions, this battery provides the ideal combination of 6S voltage punch and 6Ah endurance. The robust construction features professional-grade XT60 discharge connector and JST-XH balance plug for seamless integration with your flight controller.

Designed for pilots who refuse to compromise between power and flight time, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. The optimized 2P cell arrangement balances voltage and capacity at 578g - delivering professional-grade performance for demanding applications without excessive weight.

Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.

Technical Specifications

Electrical Specifications
Capacity 6.0Ah / 129.6 Wh
Gravimetric Energy Density 224.2 Wh/kg
Volumetric Energy Density 404.9 Wh/cm³
Never exceed 80.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions.
Discharge Power
(Cell Spec)
1296.0W
Discharge Current
(Cell Spec)
60.0A
Charge Rate Normal 6.0A
Charge Rate Maximum 18.0A
Charging Notes Do not exceed 80C
Maximum Voltage 25.2V pack / 4.2V per cell
Minimum Voltage 15.3V pack / 2.55V per cell
Storage Voltage 21.6V pack / 3.6V per cell
Landing Voltage 16.2V pack / 2.7V per cell
Physical Specifications
Cell Type Molicel P30B
Configuration 6S2P
Pack Weight (±3g) 578 g
Width 5.7 cm / 2.24 inch
Height 3.9 cm / 1.54 inch
Length 14.4 cm / 5.67 inch
Discharge Connector XT60
Balance Connector JST-XH-7P, 24AWG
