SKU: RD0601-216000a

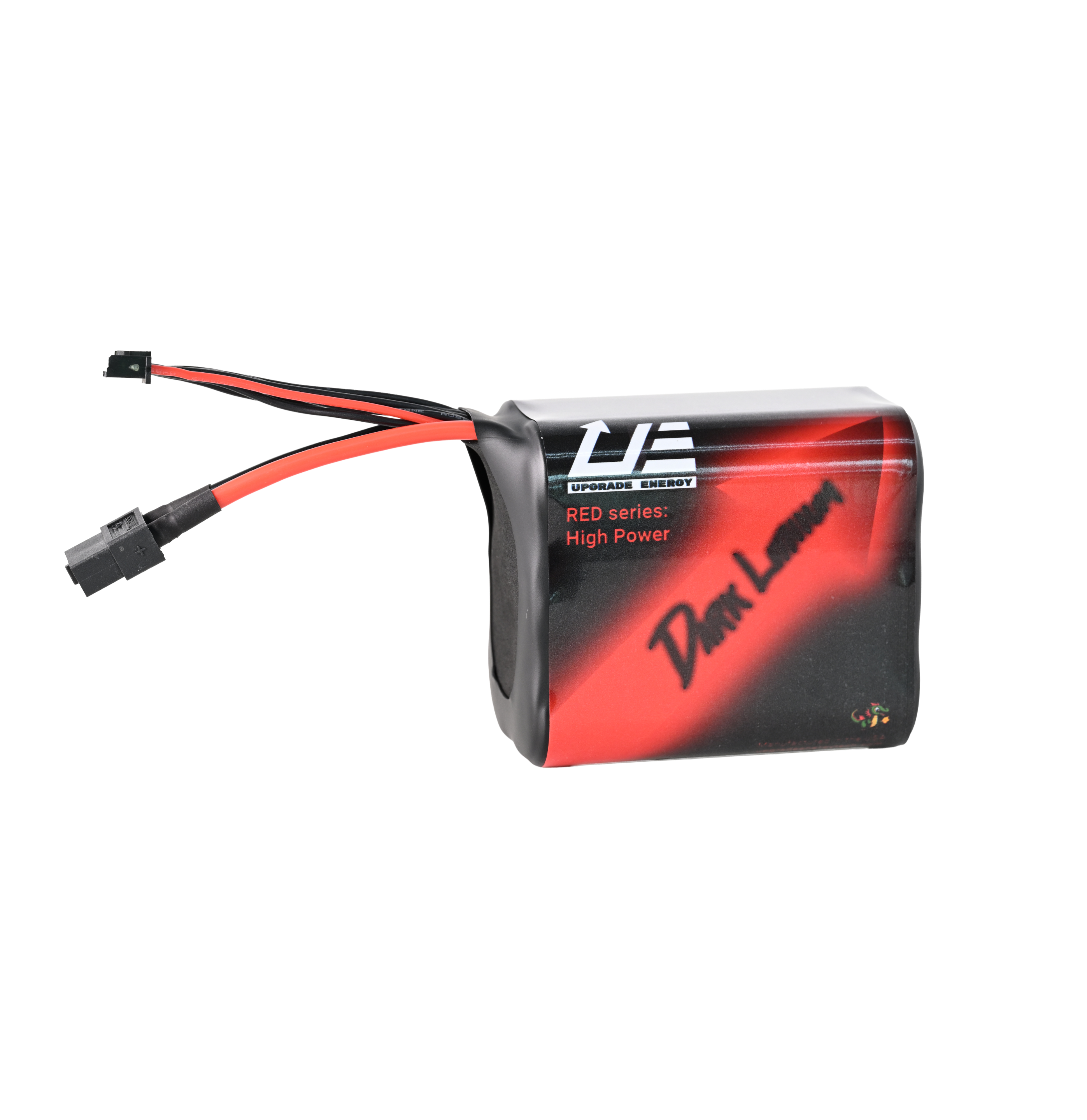

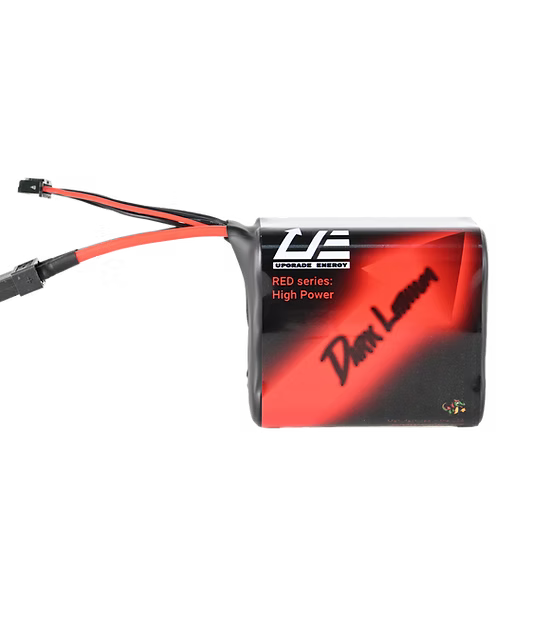

Experience unmatched flight performance with our RED V3 6S1P battery pack, engineered for aggressive pilots demanding maximum voltage and explosive power. Built with premium Molicel P50B cells, this high-voltage powerhouse delivers consistent 675W discharge capability while maintaining exceptional energy density at 242Wh/kg.
Perfect for freestyle rigs, racing quads, and high-performance 5-7 inch builds, this battery provides the voltage punch needed for vertical climbs, aggressive maneuvers, and lightning-fast throttle response. The robust construction features professional-grade XT60 discharge connector and JST-XH balance plug for seamless integration with your flight controller.
Designed for pilots who demand explosive acceleration and precision control, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. The compact single-parallel configuration delivers raw 6S power while keeping weight at just 446g - crucial for maintaining your quad's aggressive handling and responsiveness.
Technical Specifications
Integration Notes
Battery should have access to constant airflow during use and during charging. Charge and discharge power and current rating is limited by the amount of airflow over the battery during flight. Cell skin temperature must remain below 80C during use.
| Capacity | 5.0Ah / 108.0 Wh |
| Gravimetric Energy Density | 242.2 Wh/kg |
| Volumetric Energy Density | 508.4 Wh/cm³ |
| Never exceed 60.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions. | |
|
Discharge Power (Cell Spec) |
1296.0W |
|
Discharge Current (Cell Spec) |
60.0A |
| Charge Rate Normal | 5.0A |
| Charge Rate Maximum | 25.0A |
| Charging Notes | 70C cut-off |
| Maximum Voltage | 25.2V pack / 4.2V per cell |
| Minimum Voltage | 15.3V pack / 2.55V per cell |
| Storage Voltage | 21.6V pack / 3.6V per cell |
| Landing Voltage | 16.2V pack / 2.7V per cell |
| Cell Type | Molicel P50B |
| Configuration | 6S1P |
| Pack Weight (±3g) | 446 g |
| Width | 6.5 cm / 2.56 inch |
| Height | 4.3 cm / 1.69 inch |
| Length | 7.6 cm / 2.99 inch |
| Discharge Connector | XT60 |
| Balance Connector | JST-XH-7P, 24AWG |
