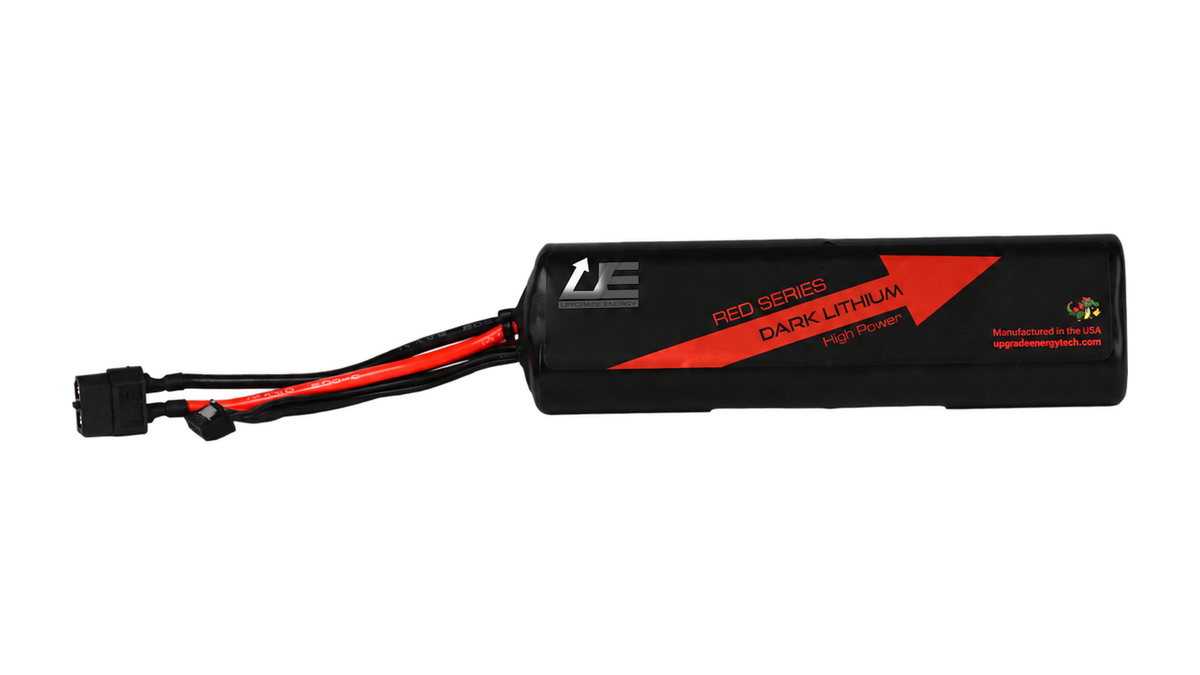

RED V3 6S1P 5Ah Molicel P50B Long — High Power battery, black JST-XH balance connector, leads facing left

RED V3 6S1P 5Ah Molicel P50B Long

$120.00
Skip to product information
RED V3 6S1P 5Ah Molicel P50B Long — High Power battery, black JST-XH balance connector, leads facing left
RED V3 6S1P 5Ah Molicel P50B Long

RED V3 6S1P 5Ah Molicel P50B Long
RD0601-216001a
$120.00

All products are made to order. Current lead time is 4-5 weeks. Orders over 15 quantity may take extra time to process.

RED V3 6S1P Long High Power battery pack built with Molicel P50B cells, with 5 Ah capacity and 21.6 V nominal voltage.

Specifications

Configuration 6S1P
Cell Molicel P50B
Cell format 21700
Form factor Long
Capacity 5 Ah
Nominal energy 108 Wh
Nominal voltage 21.6 V
Maximum charge voltage 25.2 V
Minimum pack voltage 15.3 V
Recommended landing voltage 16.2 V
Continuous power 432 W
Continuous current 20 A
10-second burst power 864 W
10-second burst current 40 A
2-minute burst current 28 A
Charge current 4 A (0.8C)
Dimensions (L × W × H) 15.1 × 4.3 × 4.3 cm
Pack weight 432 g
Energy density 250 Wh/kg
Balance connector JST-XHP-7
Maximum pack temperature 80 °C

Connector options

  • XT60 — RD0601-216001a

Use a suitable balance charger and monitor individual series-group voltages. Pack voltage alone does not verify every series cell group remains within its limits. The 80 °C maximum is a pack temperature limit, not an ambient-temperature rating or a charging temperature allowance.

Documents
Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.
