SKU: RD0601-186021a
$100.00
Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.
Technical Specifications
| Capacity | 3.0Ah / 64.8 Wh |
| Gravimetric Energy Density | 217.5 Wh/kg |
| Volumetric Energy Density | 379.0 Wh/cm³ |
| Never exceed 80.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions. | |
|
Discharge Power (Cell Spec) |
648.0W |
|
Discharge Current (Cell Spec) |
30.0A |
| Charge Rate Normal | 3.0A |
| Charge Rate Maximum | 9.0A |
| Charging Notes | Do not exceed 80C |
| Maximum Voltage | 25.2V pack / 4.2V per cell |
| Minimum Voltage | 15.3V pack / 2.55V per cell |
| Storage Voltage | 21.6V pack / 3.6V per cell |
| Landing Voltage | 16.2V pack / 2.7V per cell |
| Cell Type | Molicel P30B |
| Configuration | 6S1P |
| Pack Weight (±3g) | 298 g |

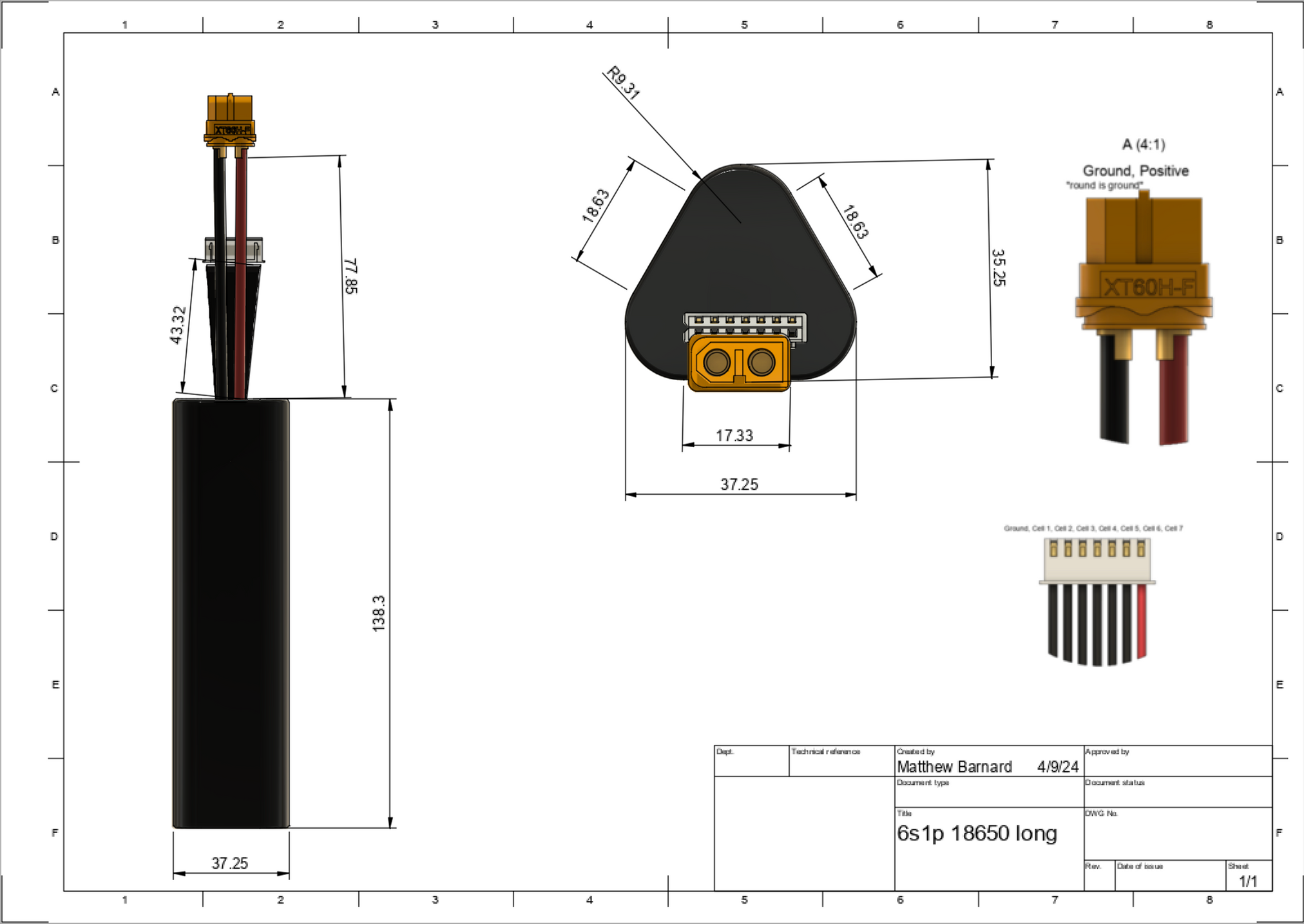

| Width | 3.52 cm / 1.39 inch |
| Height | 3.52 cm / 1.39 inch |
| Length | 13.8 cm / 5.43 inch |
| Discharge Connector | XT60, 14AWG |
| Balance Connector | JST-XH-7P, 22AWG |
