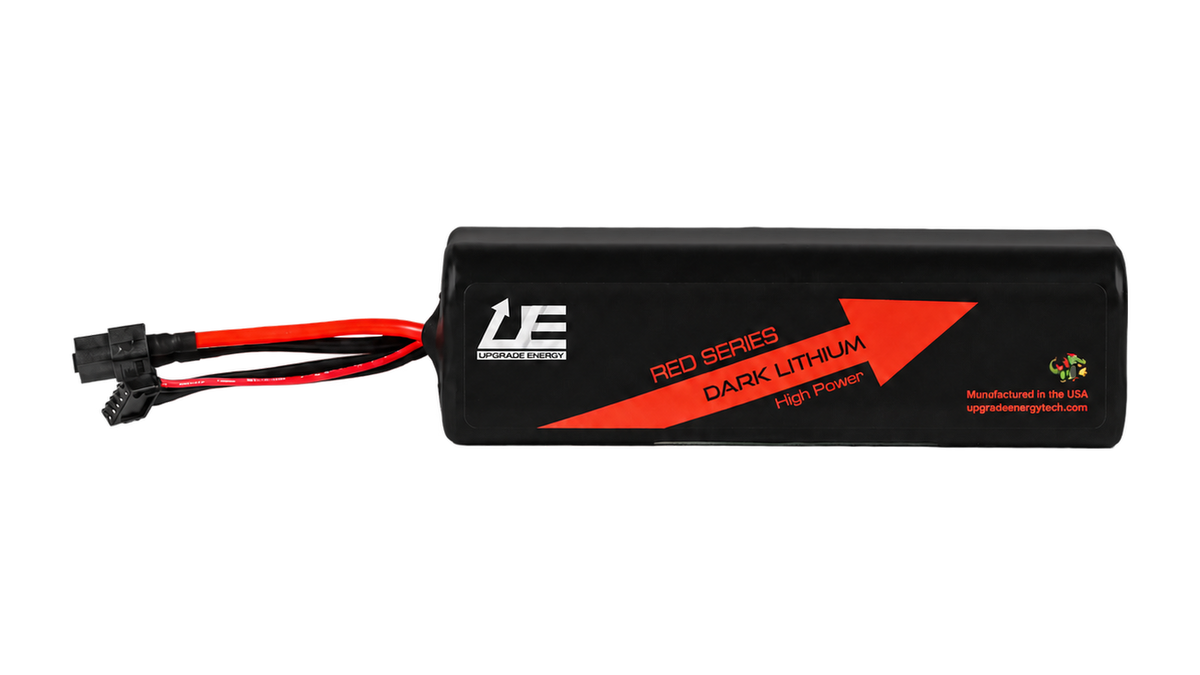

RED V3 4S2P 10Ah Molicel P50B — High Power battery, black JST-XH balance connector, leads facing left

RED V3 4S2P 10Ah Molicel P50B

XT60
$140.00
Skip to product information
RED V3 4S2P 10Ah Molicel P50B — High Power battery, black JST-XH balance connector, leads facing left
RED V3 4S2P 10Ah Molicel P50B

RED V3 4S2P 10Ah Molicel P50B
RD0402-216000a
$140.00

All products are made to order. Current lead time is 4-5 weeks. Orders over 15 quantity may take extra time to process.
Connector

RED V3 4S2P High Power battery pack built with Molicel P50B cells, with 10 Ah capacity and 14.4 V nominal voltage.

Specifications

Configuration 4S2P
Cell Molicel P50B
Cell format 21700
Form factor Standard
Capacity 10 Ah
Nominal energy 144 Wh
Nominal voltage 14.4 V
Maximum charge voltage 16.8 V
Minimum pack voltage 10.2 V
Recommended landing voltage 10.8 V
Continuous power 519.84 W
Continuous current 38 A
10-second burst power 1152 W
10-second burst current 80 A
2-minute burst current 56 A
Charge current 8 A (0.8C)
Dimensions (L × W × H) 14.5 × 4.3 × 4.3 cm
Pack weight 567 g
Energy density 253.97 Wh/kg
Balance connector JST-XHP-5
Maximum pack temperature 80 °C

Connector options

  • XT60 — RD0402-216000a
  • XT90S — RD0402-219000a

Use a suitable balance charger and monitor individual series-group voltages. Pack voltage alone does not verify every series cell group remains within its limits. The 80 °C maximum is a pack temperature limit, not an ambient-temperature rating or a charging temperature allowance.

Documents
Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.
