SKU: RD0402-216000a

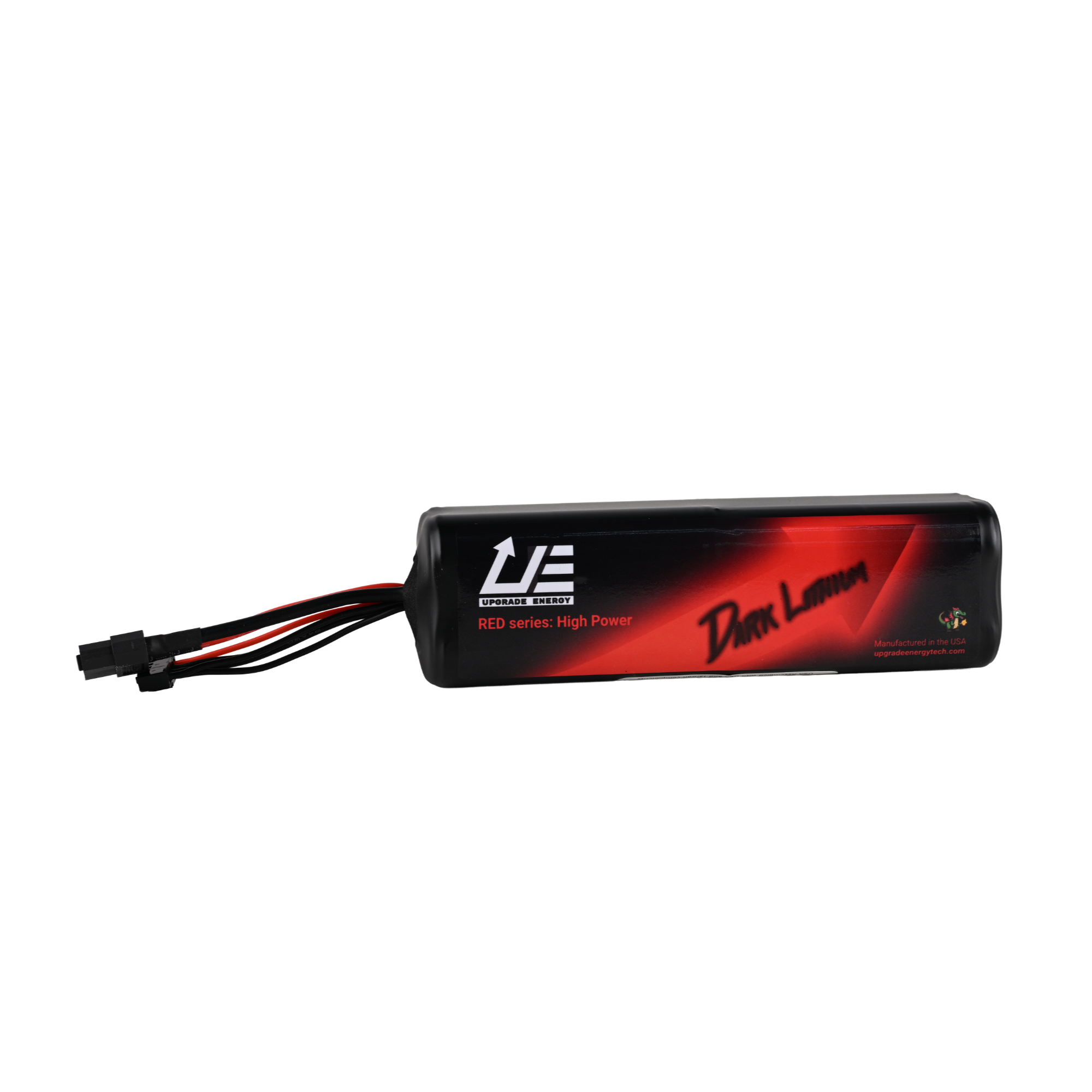

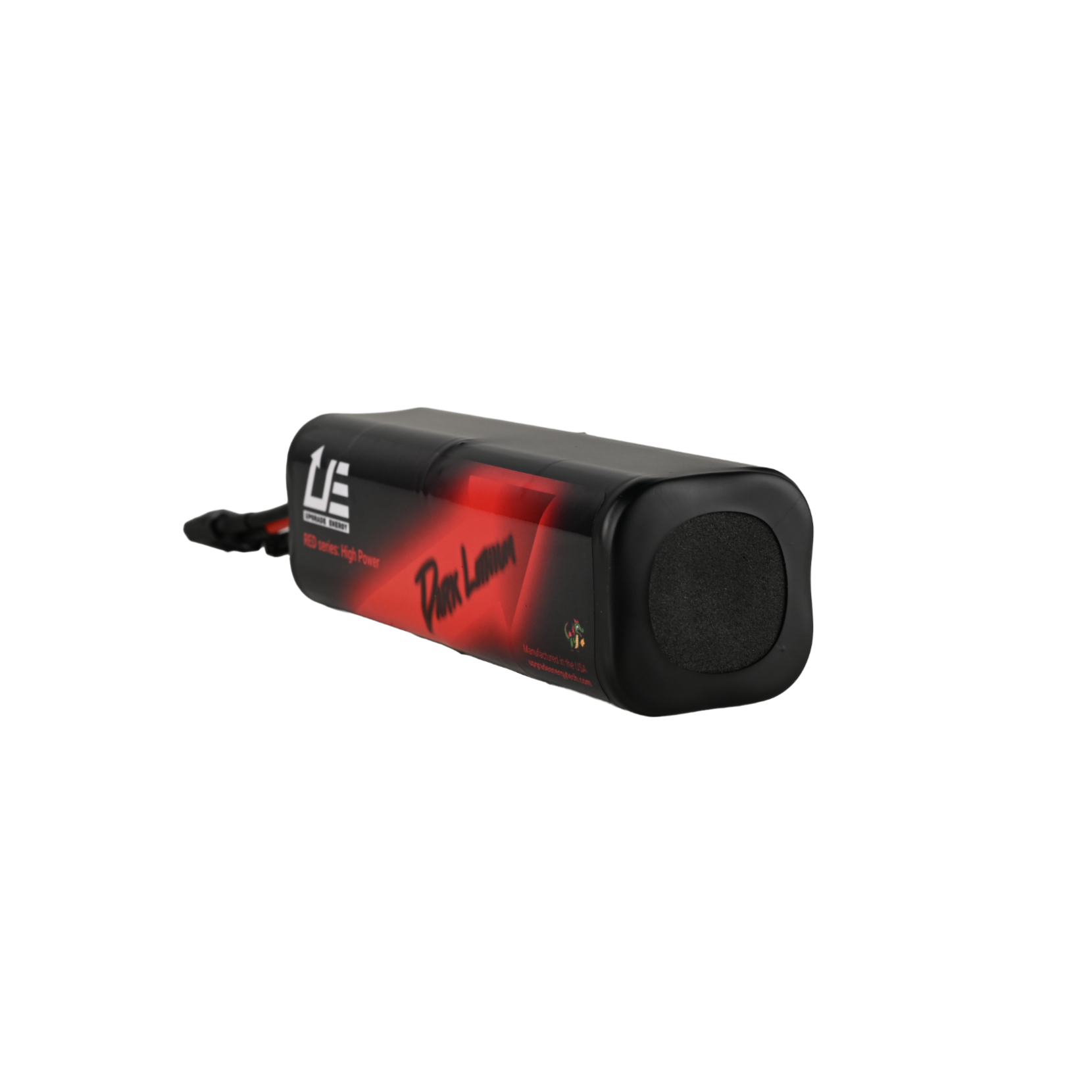

Experience unmatched flight performance with our RED V3 4S2P battery pack, engineered for pilots prioritizing maximum endurance on 4S platforms. Built with premium Molicel P50B cells in a parallel configuration, this high-capacity powerhouse delivers consistent 900W discharge capability with 100A burst power while maintaining exceptional energy density at 249Wh/kg.
Perfect for survey work, extended cinematic missions, and long-range exploration, this battery provides nearly double the flight time of standard packs without compromising power delivery. The robust construction features professional-grade XT60/XT90 discharge connector and JST-XH balance plug for seamless integration with your flight controller.
Designed for pilots who demand extended air time and reliable power output, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. The optimized 2P cell arrangement maximizes capacity at 10Ah while maintaining reasonable weight at 578g - ideal for applications where flight duration is paramount.
Technical Specifications
| Capacity | 10.0Ah / 144.0 Wh |
| Gravimetric Energy Density | 249.1 Wh/kg |
| Volumetric Energy Density | 537.1 Wh/cm³ |
| Never exceed 60.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions. | |
|
Discharge Power (Cell Spec) |
1728.0W |
|
Discharge Current (Cell Spec) |
120.0A |
| Charge Rate Normal | 10.0A |
| Charge Rate Maximum | 50.0A |
| Charging Notes | 70C cut-off |
| Maximum Voltage | 16.8V pack / 4.2V per cell |
| Minimum Voltage | 10.2V pack / 2.55V per cell |
| Storage Voltage | 14.4V pack / 3.6V per cell |
| Landing Voltage | 10.8V pack / 2.7V per cell |
| Cell Type | Molicel P50B |
| Configuration | 4S2P |
| Pack Weight (±3g) | 578 g |
| Width | 4.3 cm / 1.69 inch |
| Height | 4.3 cm / 1.69 inch |
| Length | 14.5 cm / 5.71 inch |
| Discharge Connector | XT60 / XT90 |
| Balance Connector | JST-XH-5P, 22AWG |
