SKU: RD0401-186000a

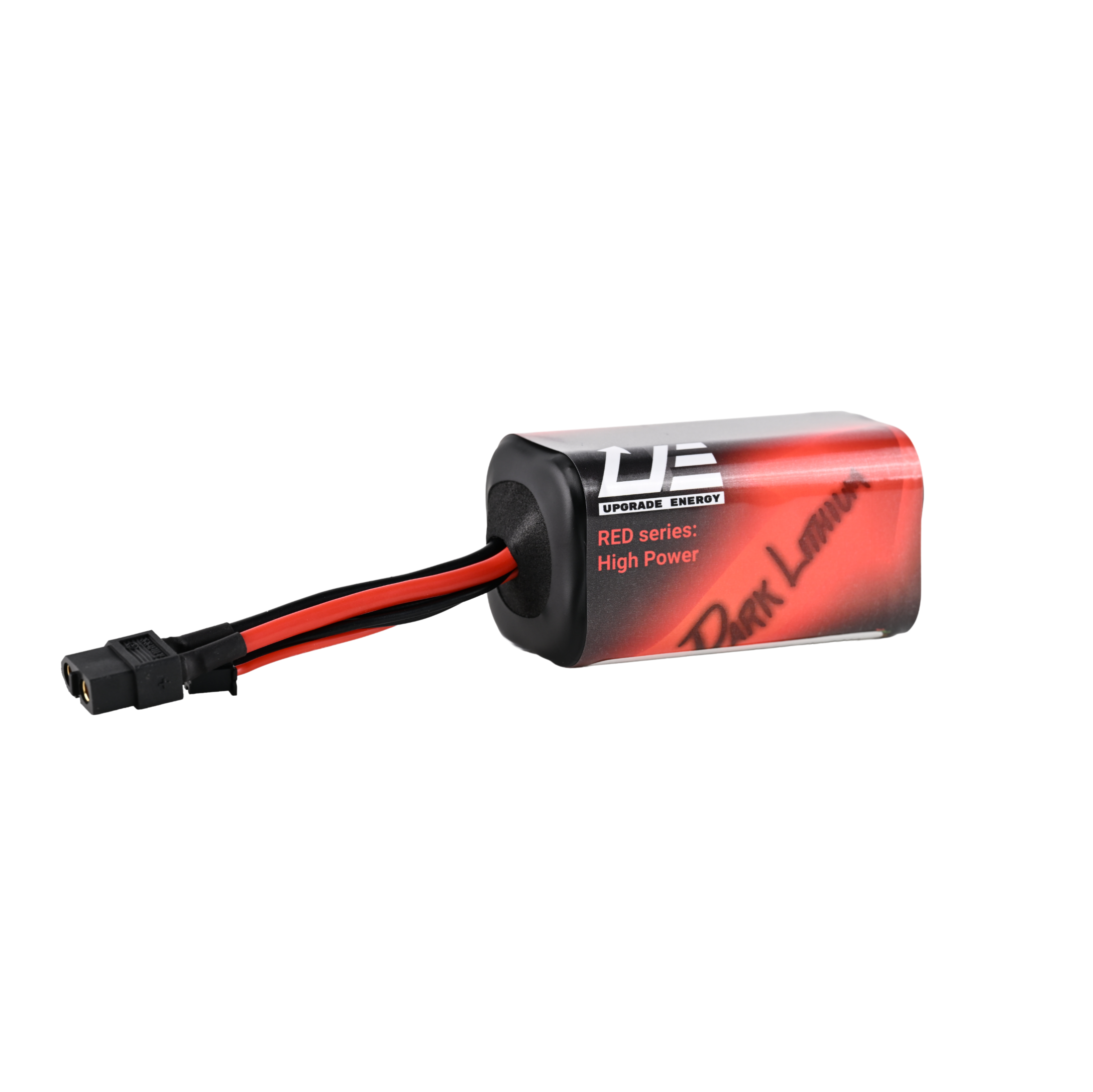

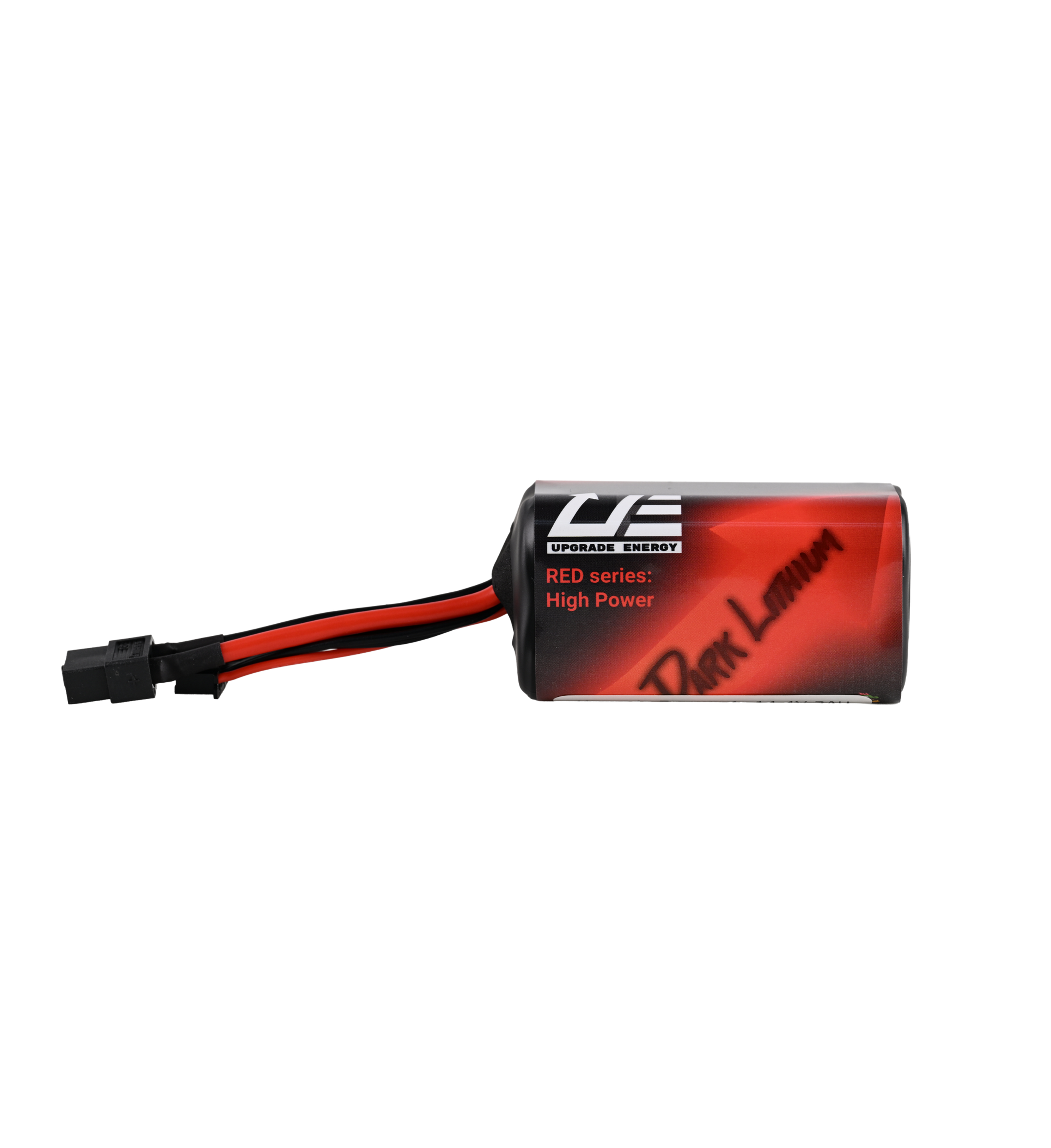

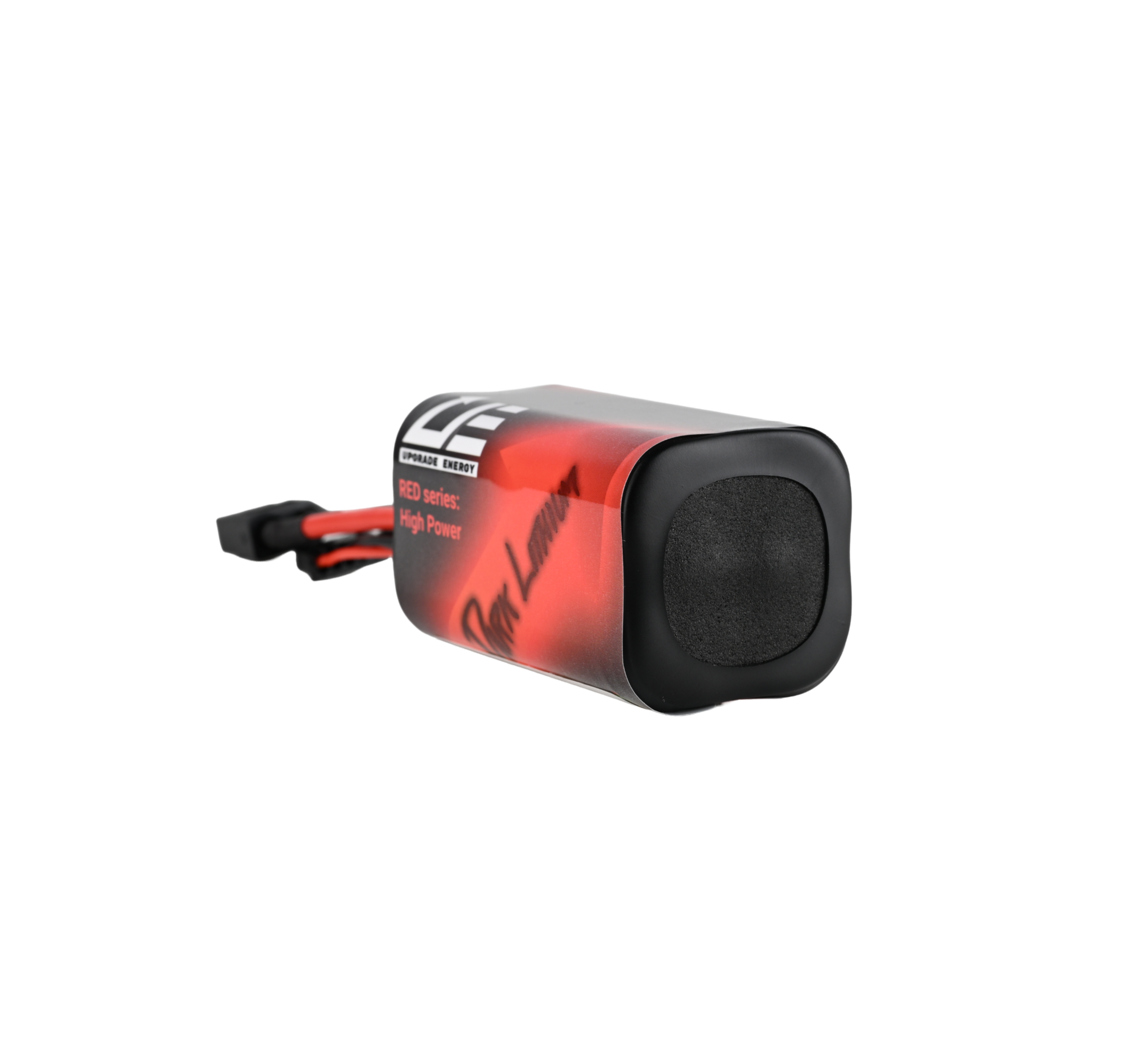

Experience unmatched flight performance with our RED V3 4S1P battery pack, engineered for serious FPV pilots and drone enthusiasts. Built with premium Molicel P30B cells, this compact powerhouse delivers consistent 300W discharge capability while maintaining exceptional energy density at 216Wh/kg.
Perfect for racing quads, freestyle rigs, and high-performance builds, this battery provides the reliable power you need for aggressive flying styles. The robust construction features professional-grade XT60 discharge connector and JST-XH balance plug for seamless integration with your flight controller.
Designed for pilots who demand both power and precision, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. The optimized cell arrangement maximizes power delivery while keeping weight minimal - crucial for maintaining your quad's agility and flight time.
Key Features
- Premium Molicel P30B cell technology for consistent power delivery
- Compact design optimized for racing and freestyle applications
- High burst current capability for punch-outs and aggressive maneuvers
- Excellent power-to-weight ratio for extended flight performance
- Professional-grade connectors for reliable connections
Technical Specifications
Integration Notes
Battery should have access to constant airflow during use and during charging. Charge and discharge power and current rating is limited by the amount of airflow over the battery during flight. Cell skin temperature must remain below 80C during use.
| Capacity | 3.0Ah / 43.2 Wh |
| Gravimetric Energy Density | 225.0 Wh/kg |
| Volumetric Energy Density | 393.6 Wh/cm³ |
| Never exceed 80.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions. | |
|
Discharge Power (Cell Spec) |
432.0W |
|
Discharge Current (Cell Spec) |
30.0A |
| Charge Rate Normal | 3.0A |
| Charge Rate Maximum | 9.0A |
| Charging Notes | Do not exceed 80C |
| Maximum Voltage | 16.8V pack / 4.2V per cell |
| Minimum Voltage | 10.2V pack / 2.55V per cell |
| Storage Voltage | 14.4V pack / 3.6V per cell |
| Landing Voltage | 10.8V pack / 2.7V per cell |
| Cell Type | Molicel P30B |
| Configuration | 4S1P |
| Pack Weight (±3g) | 192 g |
| Width | 3.8 cm / 1.5 inch |
| Height | 3.8 cm / 1.5 inch |
| Length | 7.6 cm / 2.99 inch |
| Discharge Connector | XT60 |
| Balance Connector | JST-XH-5P, 22AWG |
| Temperature Range | -17C/0F - 80C/175F |
