SKU: GD0604-AA9000a

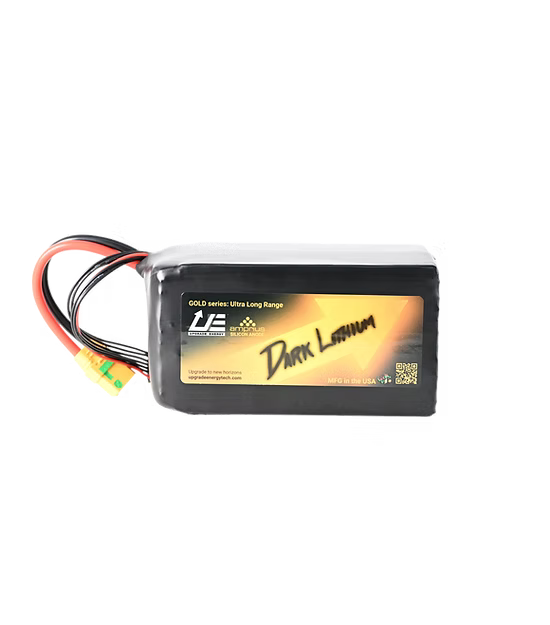

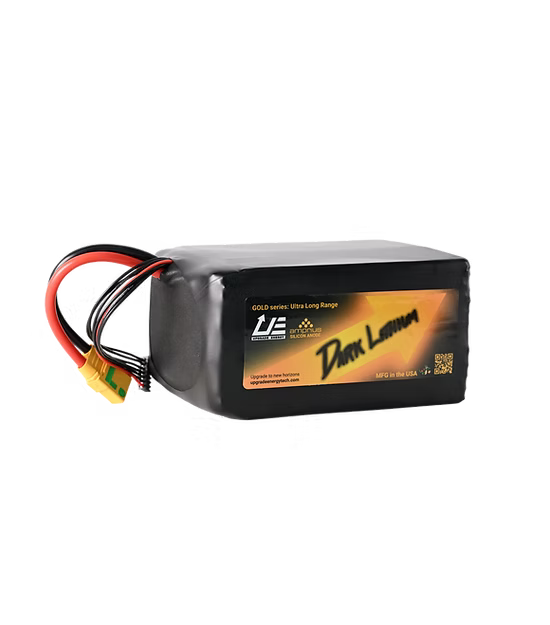

Experience revolutionary flight performance with our GOLD V1 6S4P battery pack, featuring breakthrough Amprius silicon anode technology in the highest capacity configuration commercially available. This cutting-edge powerhouse delivers consistent 1800W discharge capability with 150A burst power while achieving an extraordinary 335Wh/kg pack energy density - representing the absolute pinnacle of commercially available drone battery technology.

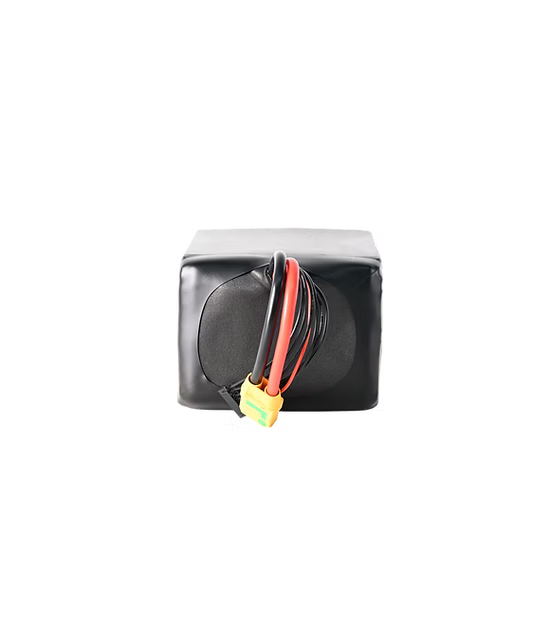

Perfect for large-scale industrial operations, extended agricultural surveys, and mission-critical applications where maximum flight time directly determines operational success, this battery provides unmatched 43.2Ah capacity for professional platforms. The robust construction features professional-grade discharge connector, JST-XH balance plug, and integrated temperature sensor designed for extreme-duration operations.
Designed for professional operators who demand the absolute maximum endurance available in modern battery technology, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. At 2630g, this revolutionary silicon anode configuration delivers 881Wh of energy - the highest energy density commercially available drone battery on the market today, enabling unprecedented flight times for industrial applications.
Technical Specifications
| Capacity | 44.4Ah / 905.76 Wh |
| Gravimetric Energy Density | 335.5 Wh/kg |
| Volumetric Energy Density | 645.2 Wh/cm³ |
| Never exceed 70.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions. | |
|
Discharge Power (Cell Spec) |
2448.0W |
|
Discharge Current (Cell Spec) |
120.0A |
|
Burst Current (Cell Spec) |
344.0A |
| Charge Rate Normal | 44.4A |
| Charging Notes | Discharge rates subject to airflow and proper cooling. Cell temperature must stay below 70°C during charging and use. |
| Maximum Voltage | 25.2V pack / 4.2V per cell |
| Minimum Voltage | 15.3V pack / 2.55V per cell |
| Storage Voltage | 20.4V pack / 3.4V per cell |
| Landing Voltage | 16.2V pack / 2.7V per cell |
| Cell Type | Amprius SA08 |
| Configuration | 6S4P |
| Pack Weight (±3g) | 2700 g |
| Width | 10.6 cm / 4.17 inch |
| Height | 8.6 cm / 3.39 inch |
| Length | 15.4 cm / 6.06 inch |
| Discharge Connector | XT90 10AWG / AS150U 8AWG |
| Balance Connector | JST-XH-7P, 22AWG |
