RED V3 6S2P 10Ah Molicel P50B
All products are made to order. Current lead time is 4-5 weeks. Orders over 15 quantity may take extra time to process.

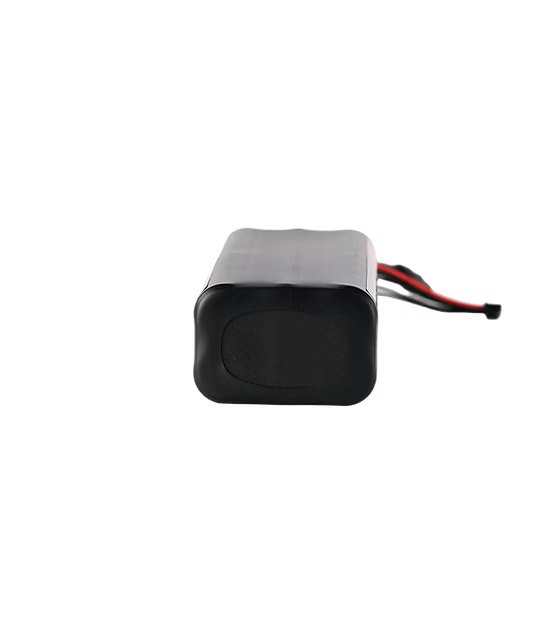

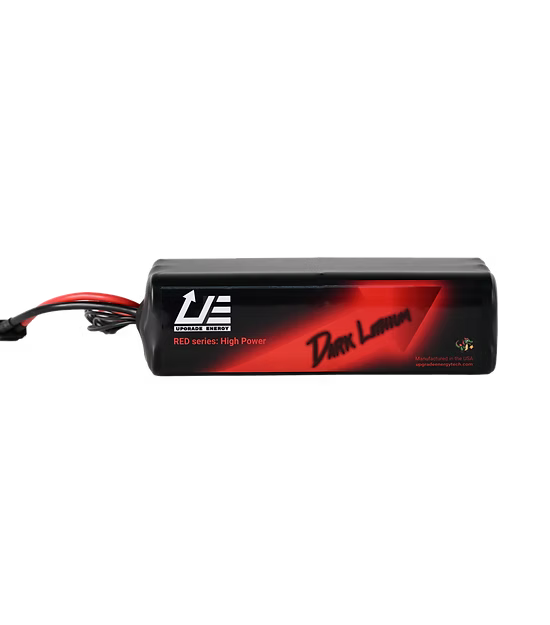

RED V3 6S2P battery pack built with Molicel P50B cells, delivering 10Ah capacity and 21.6V nominal voltage.
| Configuration | 6S2P |
|---|---|
| Cell | Molicel P50B |
| Capacity | 10 Ah |
| Nominal energy | 216 Wh |
| Nominal voltage | 21.6 V |
| Maximum charge voltage | 25.200000000000003 V |
| Minimum pack voltage | 15.299999999999999 V |
| Recommended landing voltage | 16.200000000000003 V |
| Continuous power | 624.24 W |
| Continuous current | 34 A |
| 10-second burst power | 1728 W |
| 10-second burst current | 80 A |
| 2-minute burst current | 56 A |
| Charge current | 8 A (0.8C) |
| Dimensions (L × W × H) | 15.6 × 6.6 × 4.3 cm |
| Pack weight | 860 g |
| Energy density | 251.16 Wh/kg |
| Balance connector | XHP-7 |
| Maximum pack temperature | 80°C |
Use a suitable balance charger and monitor individual series-group voltages. Pack voltage alone does not verify every series cell group remains within its limits. The 80°C maximum is a pack temperature limit, not an ambient-temperature rating or a charging temperature allowance.
