RED V3 4S1P 5Ah Molicel P50B
All products are made to order. Current lead time is 4-5 weeks. Orders over 15 quantity may take extra time to process.

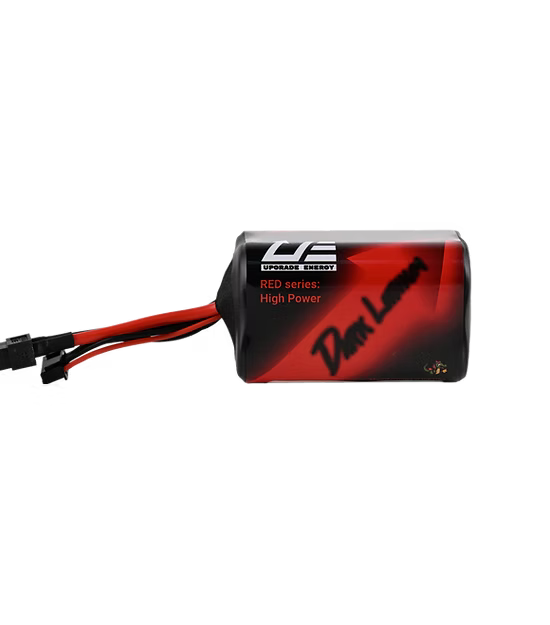

RED V3 4S1P battery pack built with Molicel P50B cells, delivering 5Ah capacity and 14.4V nominal voltage.
| Configuration | 4S1P |
|---|---|
| Cell | Molicel P50B |
| Capacity | 5 Ah |
| Nominal energy | 72 Wh |
| Nominal voltage | 14.4 V |
| Maximum charge voltage | 16.8 V |
| Minimum pack voltage | 10.2 V |
| Recommended landing voltage | 10.8 V |
| Continuous power | 288 W |
| Continuous current | 20 A |
| 10-second burst power | 576 W |
| 10-second burst current | 40 A |
| 2-minute burst current | 28 A |
| Charge current | 4 A (0.8C) |
| Dimensions (L × W × H) | 8 × 4.3 × 4.3 cm |
| Pack weight | 288 g |
| Energy density | 250 Wh/kg |
| Balance connector | XHP-5 |
| Maximum pack temperature | 80°C |
Use a suitable balance charger and monitor individual series-group voltages. Pack voltage alone does not verify every series cell group remains within its limits. The 80°C maximum is a pack temperature limit, not an ambient-temperature rating or a charging temperature allowance.
