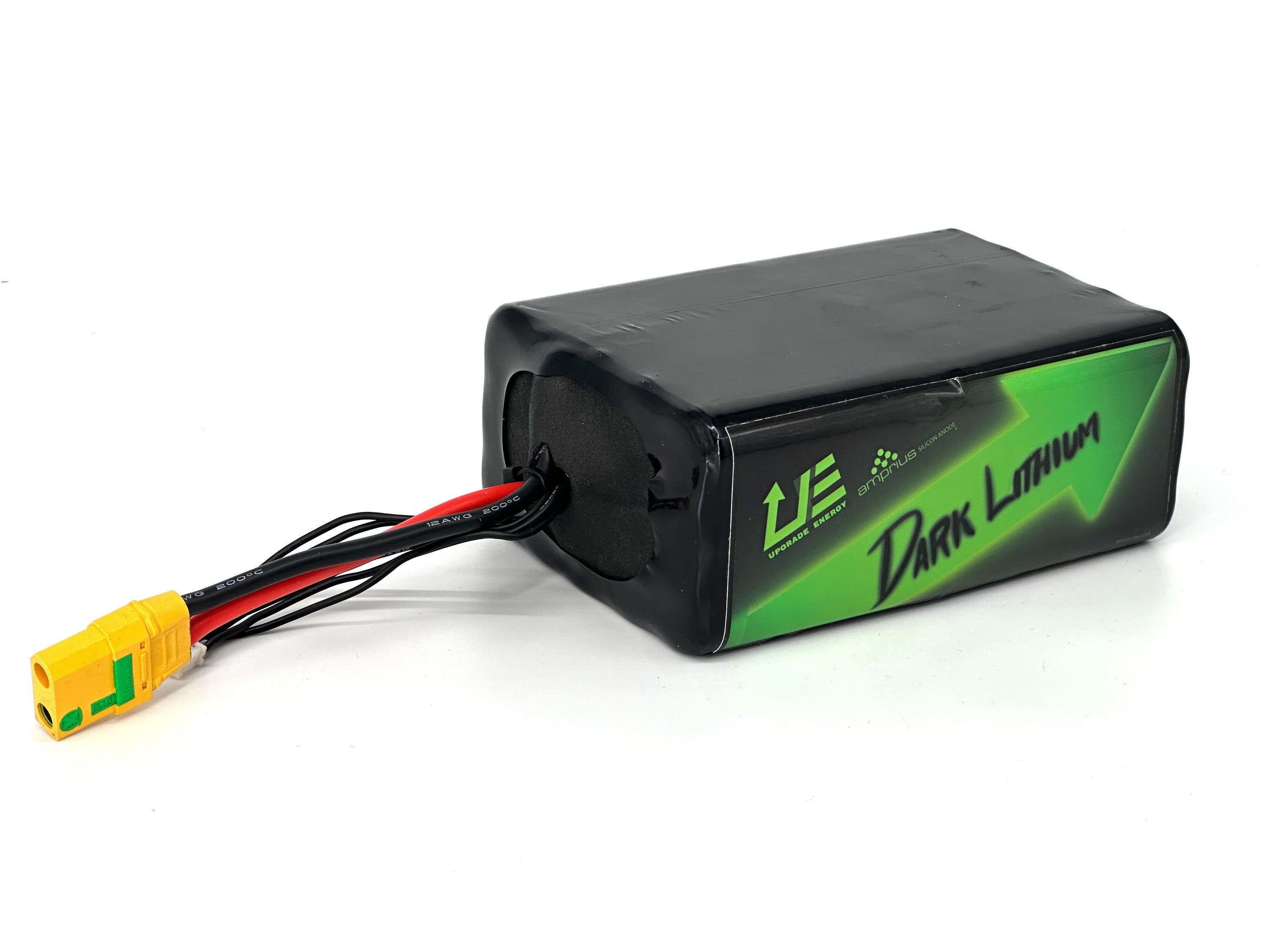

GREEN V2 6S5P 20Ah AMPRIUS SA10

SKU: GN0605-186000a

$460.00
Connector Type

Experience advanced flight performance with our GREEN V2 6S5P battery pack, featuring proven Amprius SA10 18650 silicon anode technology in a high-capacity five-parallel configuration. This reliable powerhouse delivers consistent 1000W discharge capability with 75A burst power while achieving impressive 285Wh/kg pack energy density - providing substantial endurance with the dependability of established cell technology.

Perfect for industrial operations requiring extended flight time, infrastructure inspection, and commercial applications where proven technology ensures mission reliability, this battery provides consistent 20Ah capacity for demanding professional missions. The robust construction features professional-grade discharge connector and JST-XH balance plug designed for heavy-duty professional use.

Designed for commercial operators who demand proven reliability with impressive endurance capabilities, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. At 1514g, this configuration delivers 432Wh of energy - enabling extended commercial operations with the predictable performance and field-proven reliability that professional missions require for consistent operational success.

Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.

Technical Specifications

Electrical Specifications
Capacity 20.0Ah / 432.0 Wh
Gravimetric Energy Density 285.3 Wh/kg
Volumetric Energy Density 568.8 Wh/cm³
Never exceed 70.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions.
Discharge Power
(Cell Spec)
864.0W
Discharge Current
(Cell Spec)
40.0A
Burst Current
(Cell Spec)
100.0A
Charge Rate Normal 20.0A
Maximum Voltage 25.2V pack / 4.2V per cell
Minimum Voltage 15.3V pack / 2.55V per cell
Storage Voltage 21.6V pack / 3.6V per cell
Landing Voltage 16.2V pack / 2.7V per cell

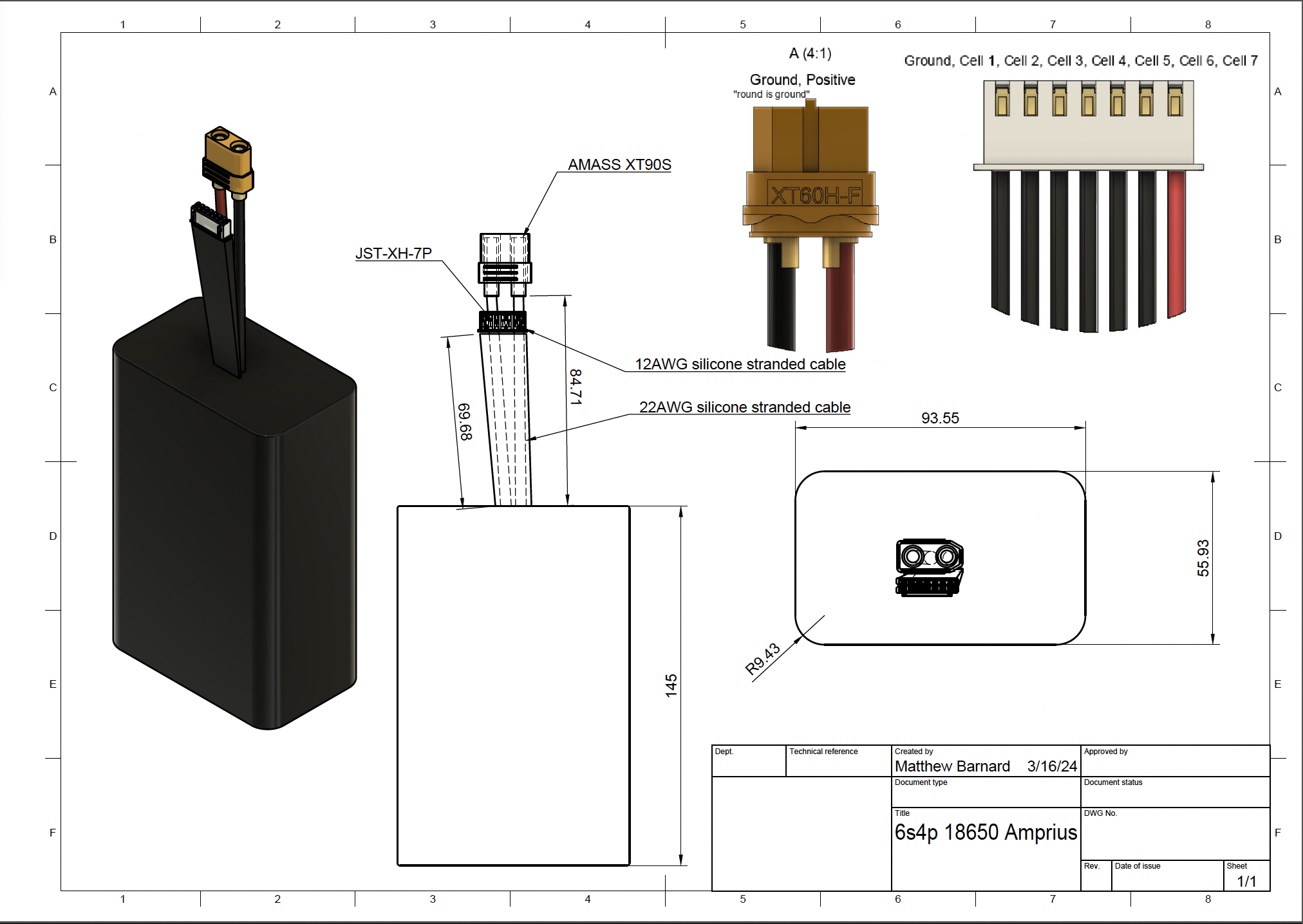

Physical Specifications
Cell Type Amprius SA10
Configuration 6S5P
Pack Weight (±3g) 1514 g
Width 9.37 cm / 3.69 inch
Height 5.59 cm / 2.2 inch
Length 14.5 cm / 5.71 inch
Discharge Connector XT60 12AWG / XT90 12AWG
Balance Connector JST-XH-7P, 22AWG
