GREEN V2 6S4P 16Ah AMPRIUS SA10

SKU: GN0604-186000a

$395.00
Connector Type

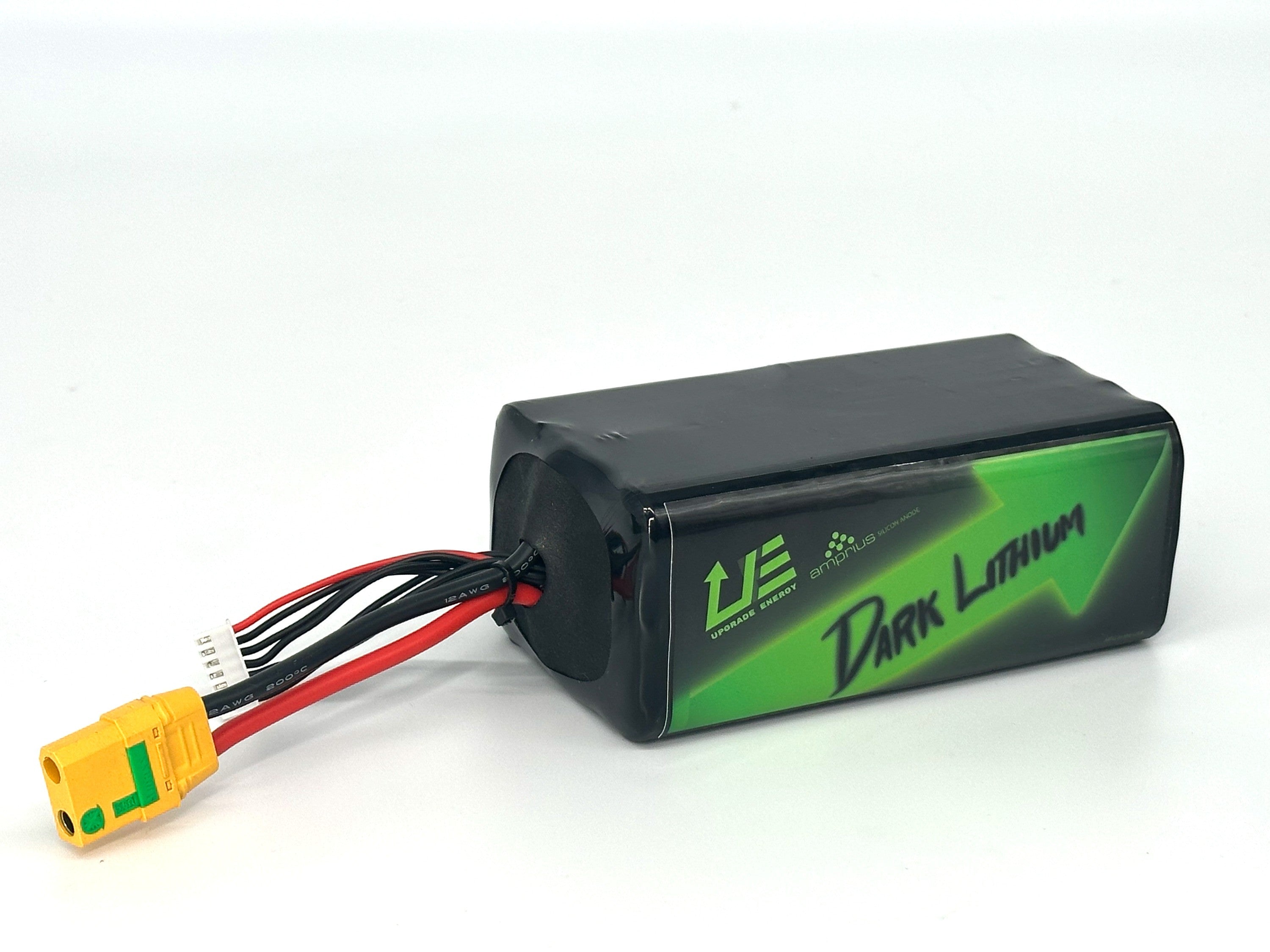

Experience advanced flight performance with our GREEN V2 6S4P battery pack, featuring proven Amprius SA10 18650 silicon anode technology in a high-capacity configuration. This reliable powerhouse delivers consistent 800W discharge capability with 60A burst power while achieving impressive 285Wh/kg pack energy density - providing serious endurance with the dependability of established cell format.

Perfect for commercial operations requiring extended flight times, professional mapping and surveying, and platforms where mission reliability demands proven technology, this battery provides consistent 16Ah capacity for mission-critical work. The robust construction features professional-grade XT60/XT90 discharge connector and JST-XH balance plug designed for demanding professional use.

Designed for professionals who need reliable results with established technology, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. At 1213g, this configuration offers excellent operational capabilities - delivering 346Wh of energy with the predictable performance characteristics and proven reliability that professional operations demand for consistent mission success.

Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.

Technical Specifications

Electrical Specifications
Capacity 16.0Ah / 345.6 Wh
Gravimetric Energy Density 284.9 Wh/kg
Volumetric Energy Density 571.3 Wh/cm³
Never exceed 70.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions.
Discharge Power
(Cell Spec)
691.2W
Discharge Current
(Cell Spec)
32.0A
Burst Current
(Cell Spec)
80.0A
Charge Rate Normal 16.0A
Maximum Voltage 25.2V pack / 4.2V per cell
Minimum Voltage 15.3V pack / 2.55V per cell
Storage Voltage 21.6V pack / 3.6V per cell
Landing Voltage 16.2V pack / 2.7V per cell

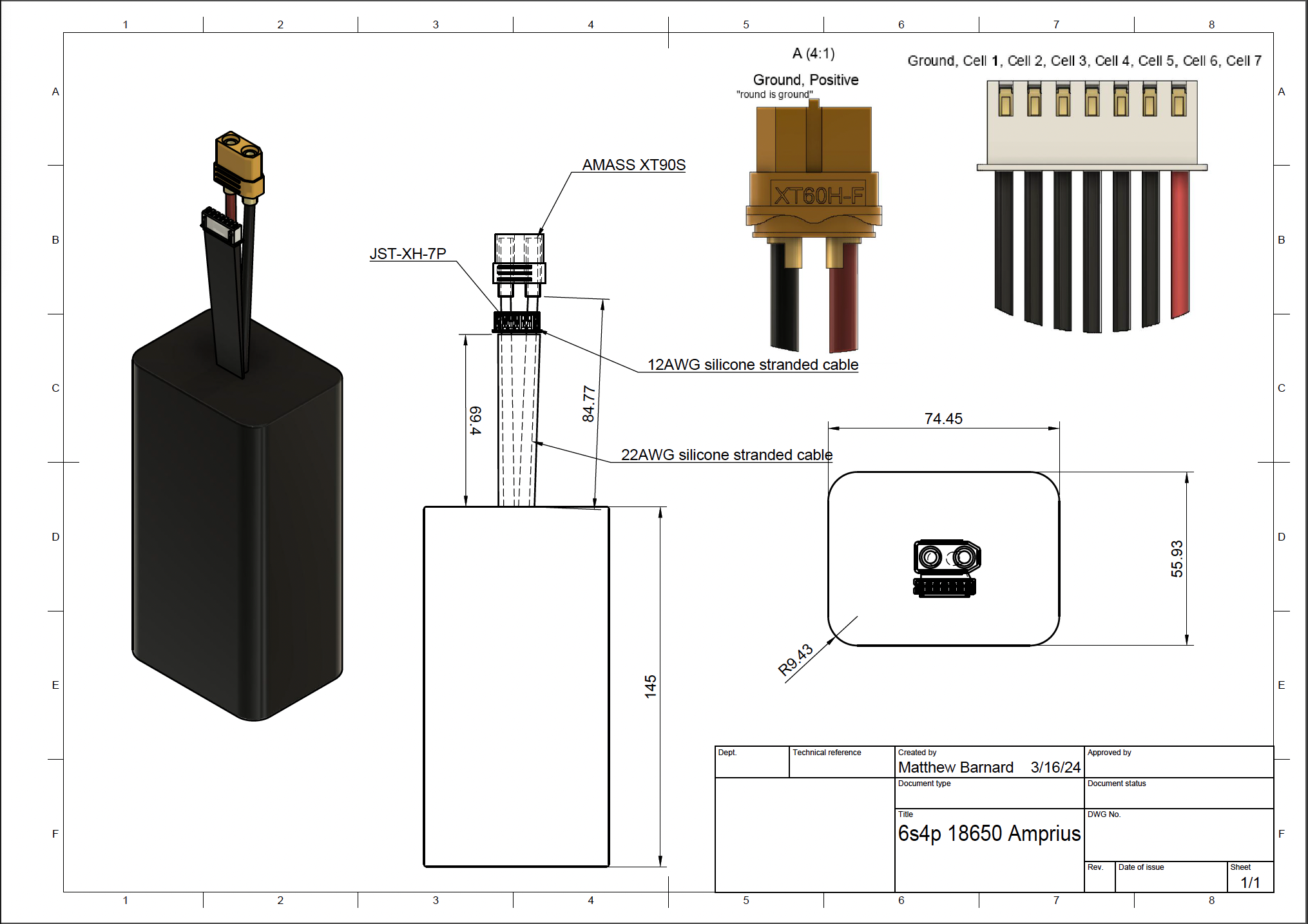

Physical Specifications
Cell Type Amprius SA10
Configuration 6S4P
Pack Weight (±3g) 1213 g
Width 7.45 cm / 2.93 inch
Height 5.6 cm / 2.2 inch
Length 14.5 cm / 5.71 inch
Discharge Connector XT60 12AWG / XT90 12AWG
Balance Connector JST-XH-7P, 22AWG
