GREEN V2 6S1P 4Ah AMPRIUS SA10

SKU: GN0601-216000a

$100.00

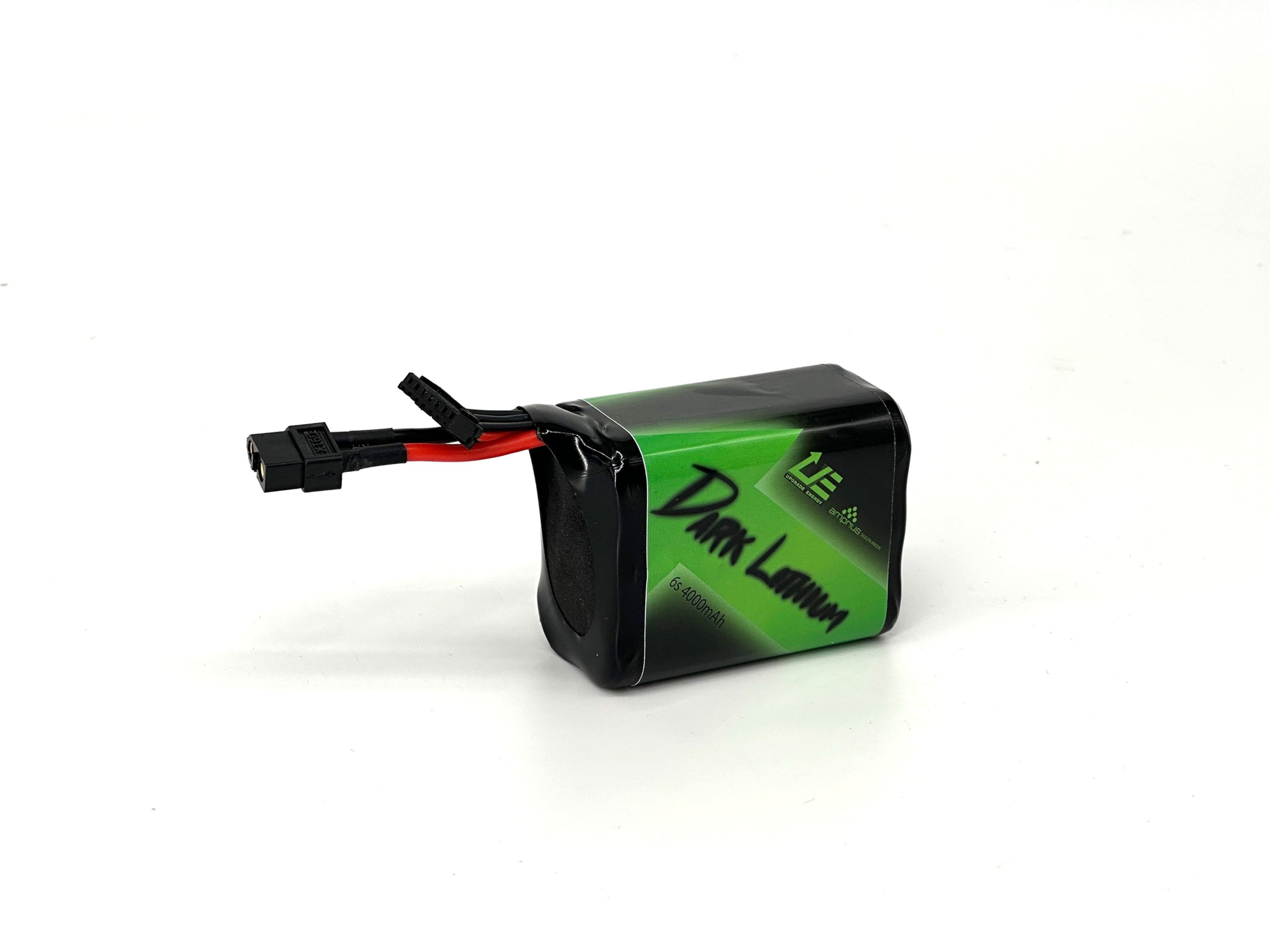

Experience advanced flight performance with our GREEN V2 6S1P battery pack, featuring proven Amprius SA10 18650 silicon anode technology in a high-voltage single-cell configuration. This reliable powerhouse delivers consistent 200W discharge capability while achieving impressive 280Wh/kg pack energy density - combining 6S voltage advantages with silicon anode efficiency.

Perfect for 6S long-range platforms, voltage-optimized builds, and pilots seeking extended range with high-voltage performance, this battery provides dependable 4Ah capacity in the established 18650 format. The robust construction features professional-grade XT60 discharge connector and JST-XH balance plug for seamless integration with your flight controller.

Designed for pilots who want 6S efficiency with proven cell technology, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. At approximately 309g, this configuration delivers excellent energy density - providing the voltage advantages of 6S operation with the reliability and predictable performance characteristics of trusted 18650 cells.

Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.

Technical Specifications

Electrical Specifications
Capacity 4.0Ah / 86.4 Wh
Gravimetric Energy Density 283.3 Wh/kg
Volumetric Energy Density 574.4 Wh/cm³
Never exceed 70.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions.
Discharge Power
(Cell Spec)
172.8W
Discharge Current
(Cell Spec)
8.0A
Burst Current
(Cell Spec)
20.0A
Charge Rate Normal 4.0A
Maximum Voltage 25.2V pack / 4.2V per cell
Minimum Voltage 15.3V pack / 2.55V per cell
Storage Voltage 21.6V pack / 3.6V per cell
Landing Voltage 16.2V pack / 2.7V per cell

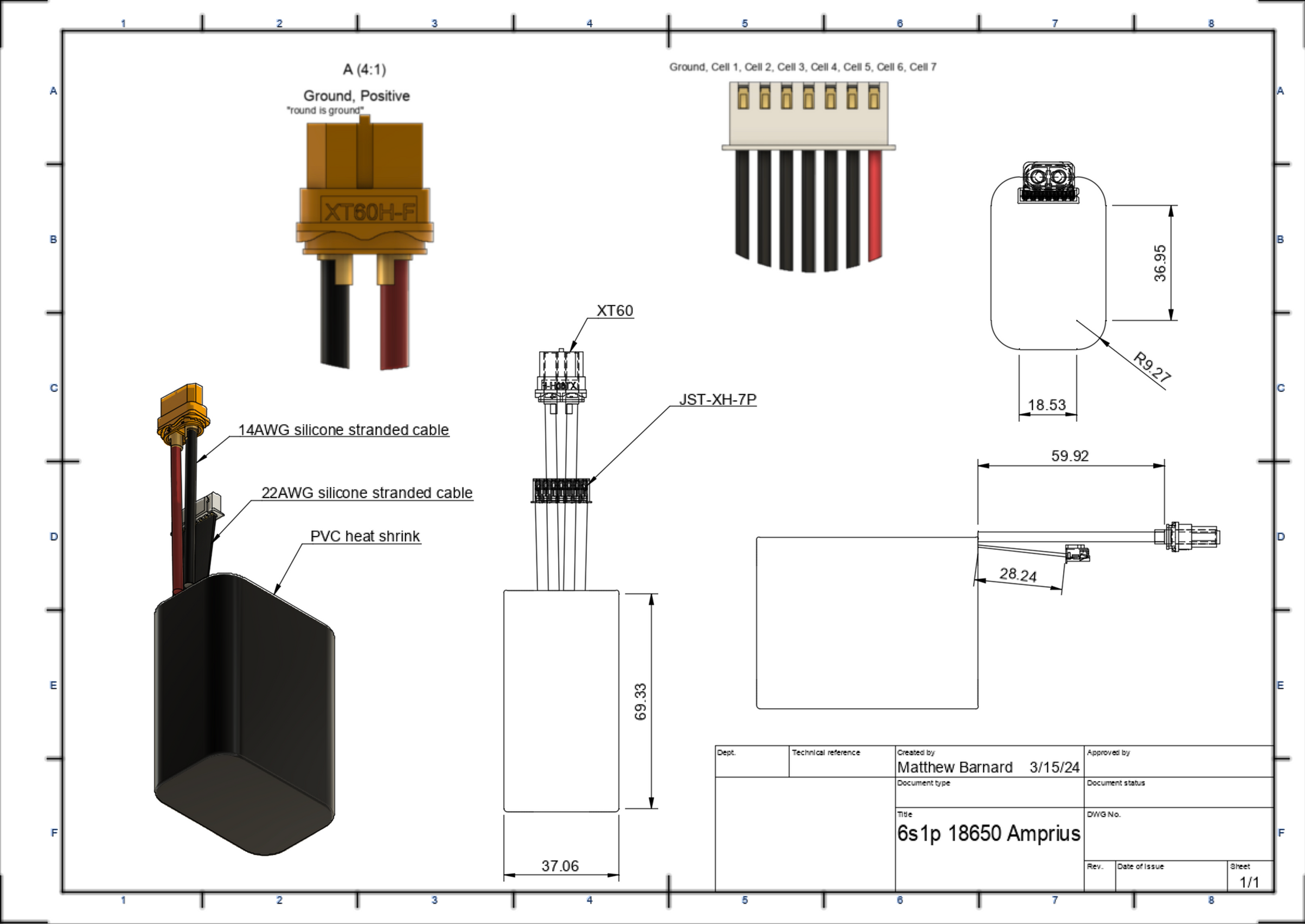

Physical Specifications
Cell Type Amprius SA10
Configuration 6S1P
Pack Weight (±3g) 305 g
Width 5.7 cm / 2.24 inch
Height 3.77 cm / 1.48 inch
Length 7.0 cm / 2.76 inch
Discharge Connector XT60 14AWG
Balance Connector JST-XH-7P, 22AWG
