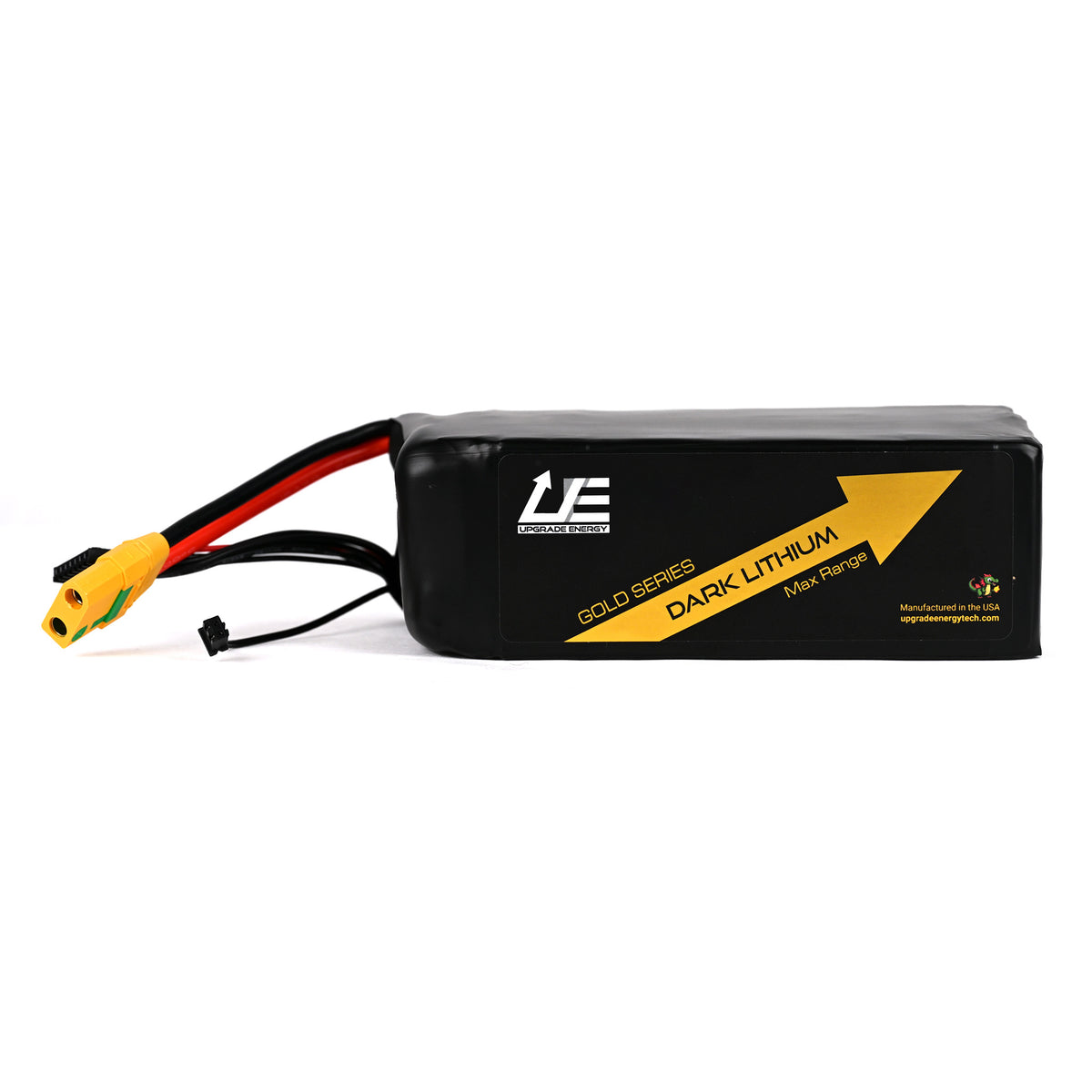

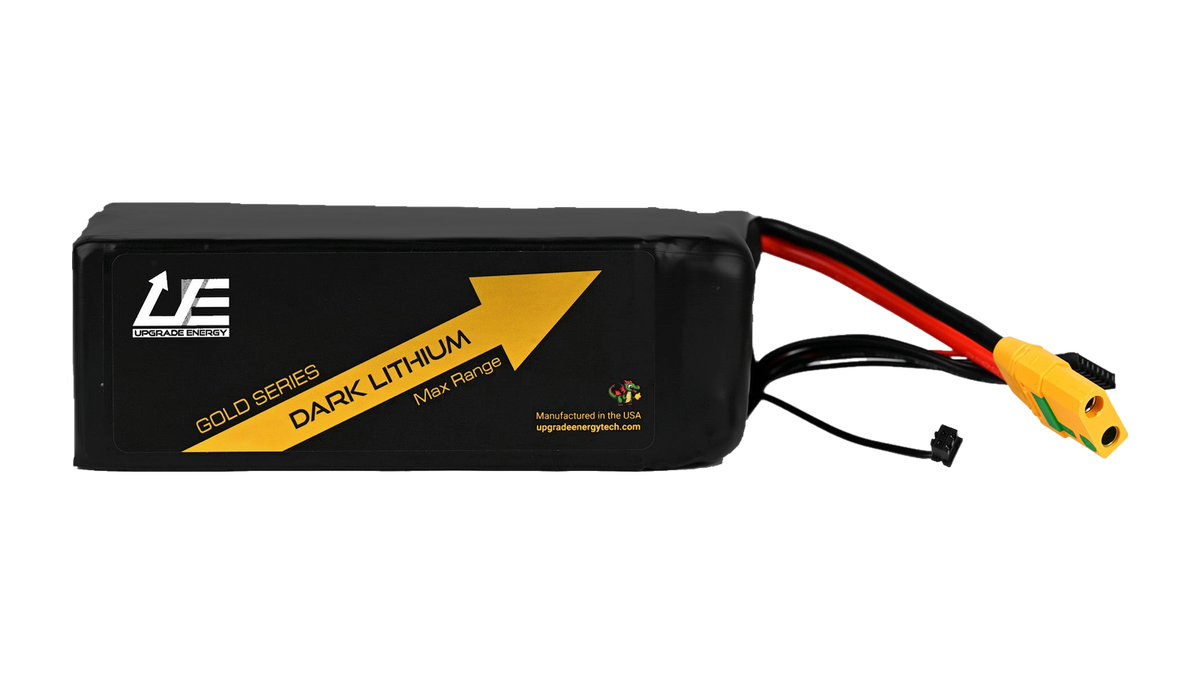

GOLD V1 6S2P 22.2Ah Amprius SA08 battery pack with 22.2 Ah capacity and 20.4 V nominal voltage.
| Configuration | 6S2P |
|---|---|
| Cell | Amprius SA08 |
| Form factor | Standard |
| Capacity | 22.2 Ah |
| Nominal energy | 453 Wh |
| Nominal voltage | 20.4 V |
| Maximum charge voltage | 25.2 V |
| Minimum pack voltage | 15.3 V |
| Recommended landing voltage | 16.2 V |
| Continuous power | 757 W |
| Continuous current | 50 A |
| 10-second burst power | 2285 W |
| 10-second burst current | 112 A |
| 2-minute burst current | 78 A |
| Charge current | 12 A |

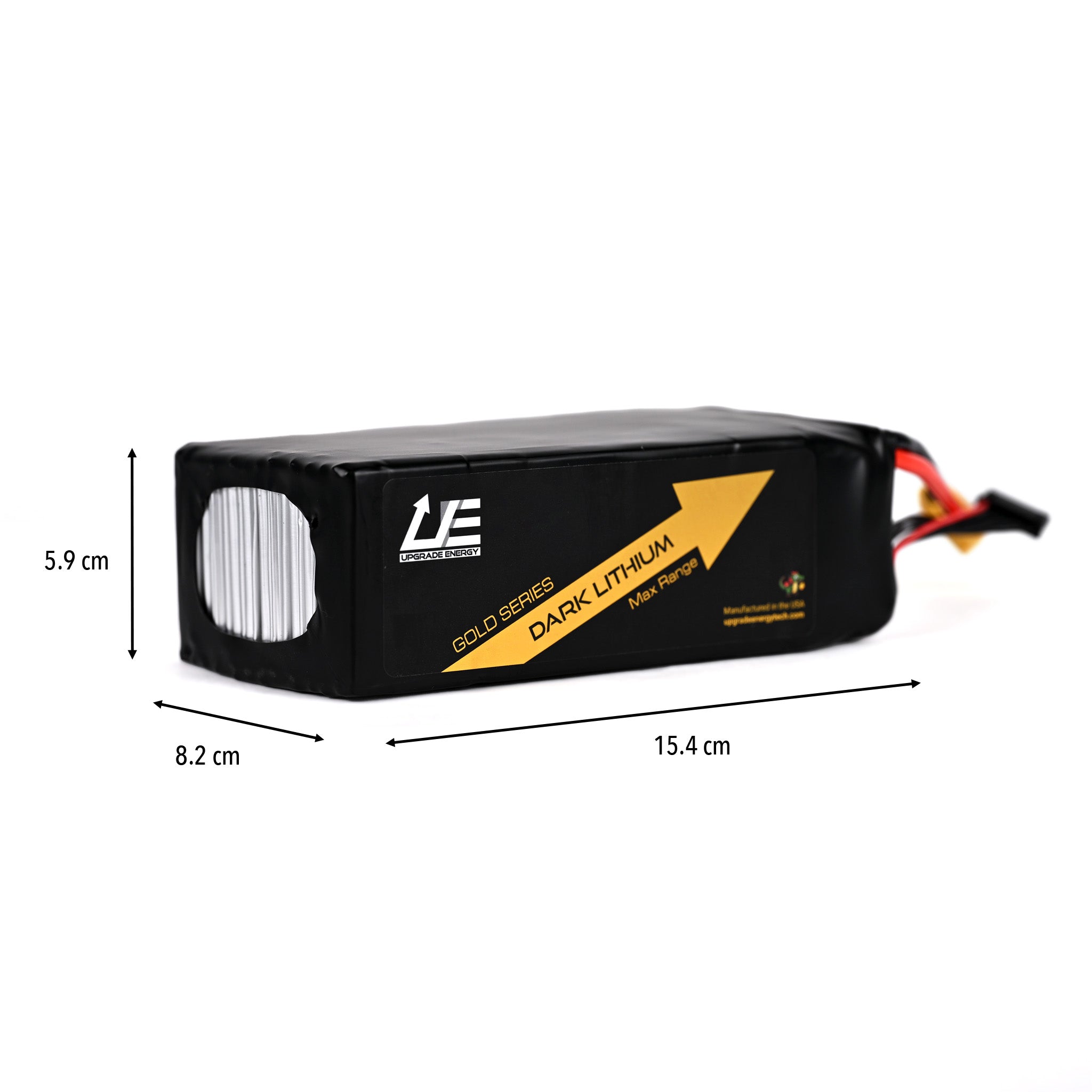

| Dimensions (L × W × H) | 15.4 × 8.2 × 5.9 cm |
| Pack weight | 1350 g |
| Energy density | 335 Wh/kg |

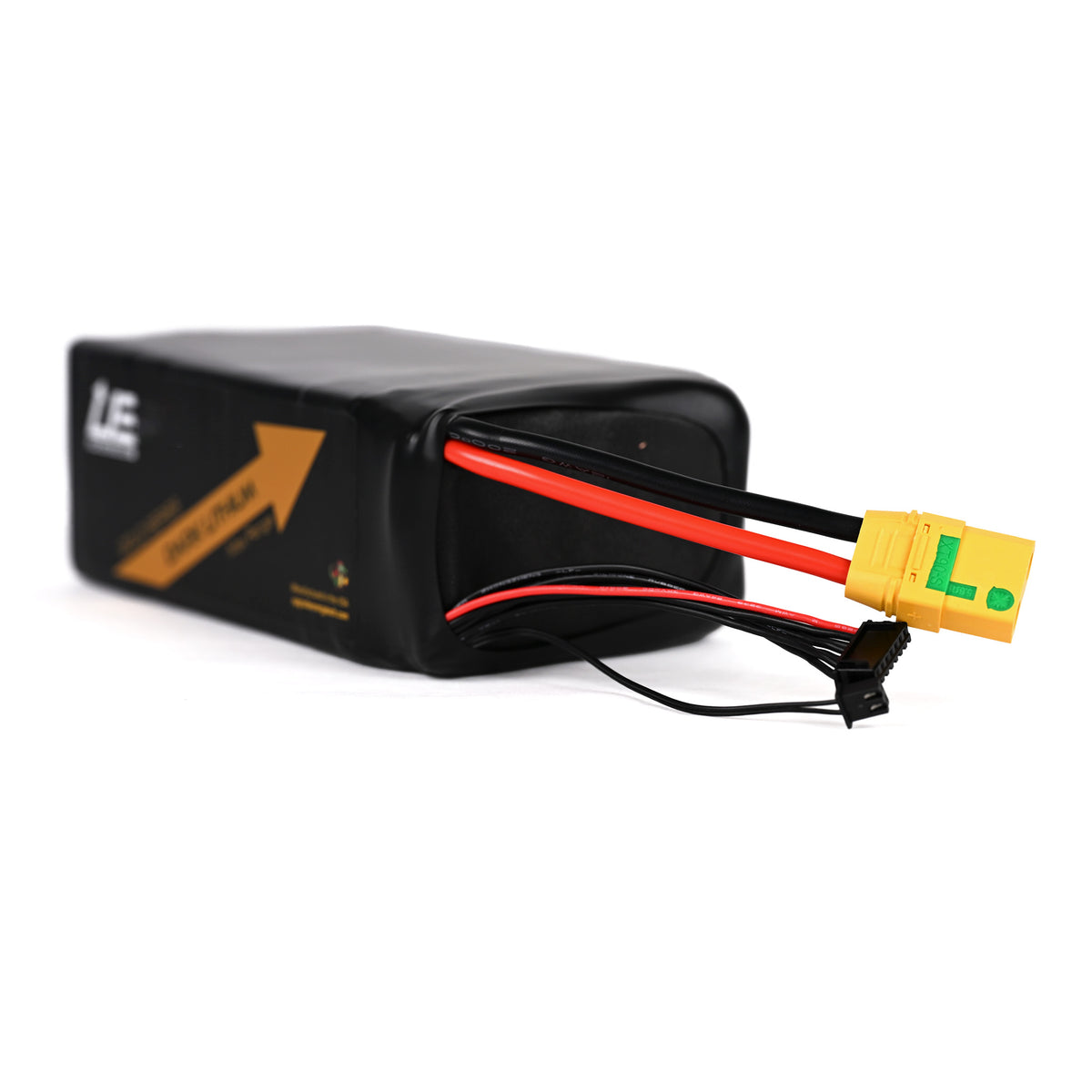

| Balance connector | JST-XHP-7 |
| Maximum pack temperature | 70 °C |
| Minimum pack temperature | 0 °C |
Use a suitable balance charger and monitor individual series-group voltages. Observe both the power and current limits. The temperature values above are pack limits, not ambient-temperature ratings or permission to charge at those temperatures.
