SKU: GD0802-AA9000a

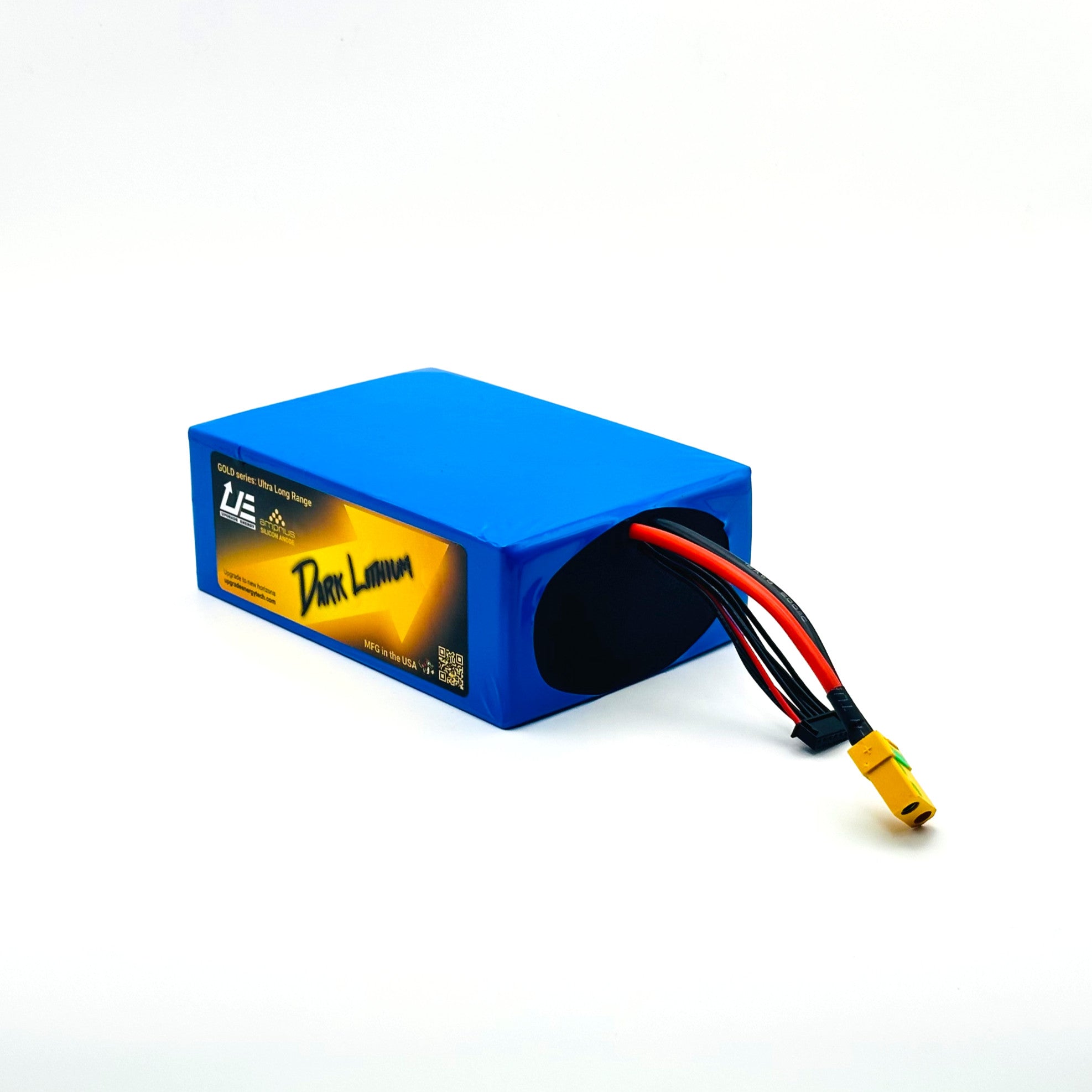

Experience revolutionary flight performance with our GOLD V1 8S2P battery pack, featuring breakthrough Amprius silicon anode technology in a unique high-voltage configuration. This cutting-edge powerhouse delivers consistent 1200W discharge capability with 100A burst power while achieving an extraordinary 338Wh/kg pack energy density - combining 8S voltage with exceptional capacity for specialized applications.
Perfect for high-voltage platforms requiring extended endurance, specialized industrial drones, and applications where 8S voltage optimization provides efficiency advantages, this battery provides 21.6Ah capacity for unique operational requirements. The robust construction features professional-grade XT60/XT90 discharge connector, JST-XH balance plug, and integrated temperature sensor for comprehensive thermal management.
Designed for professional operators with specialized high-voltage platform requirements, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. At 1800g, the revolutionary silicon anode chemistry in 8S2P configuration delivers 587Wh of energy - offering a unique voltage point with exceptional energy density for platforms engineered around 8S specifications.
Technical Specifications
| Capacity | 22.2Ah / 603.84 Wh |
| Gravimetric Energy Density | 335.5 Wh/kg |
| Volumetric Energy Density | 637.8 Wh/cm³ |
| Never exceed 70.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions. | |
|
Discharge Power (Cell Spec) |
1632.0W |
|
Discharge Current (Cell Spec) |
60.0A |
|
Burst Current (Cell Spec) |
172.0A |
| Charge Rate Normal | 22.2A |
| Charging Notes | Discharge rates subject to airflow and proper cooling. Cell temperature must stay below 70°C during charging and use. |
| Maximum Voltage | 33.6V pack / 4.2V per cell |
| Minimum Voltage | 20.4V pack / 2.55V per cell |
| Storage Voltage | 27.2V pack / 3.4V per cell |
| Landing Voltage | 21.6V pack / 2.7V per cell |
| Cell Type | Amprius SA08 |
| Configuration | 8S2P |
| Pack Weight (±3g) | 1800 g |
| Width | 10.6 cm / 4.17 inch |
| Height | 5.8 cm / 2.28 inch |
| Length | 15.4 cm / 6.06 inch |
| Discharge Connector | XT60 13AWG / XT90 13AWG |
| Balance Connector | JST-XH-7P, 22AWG |
