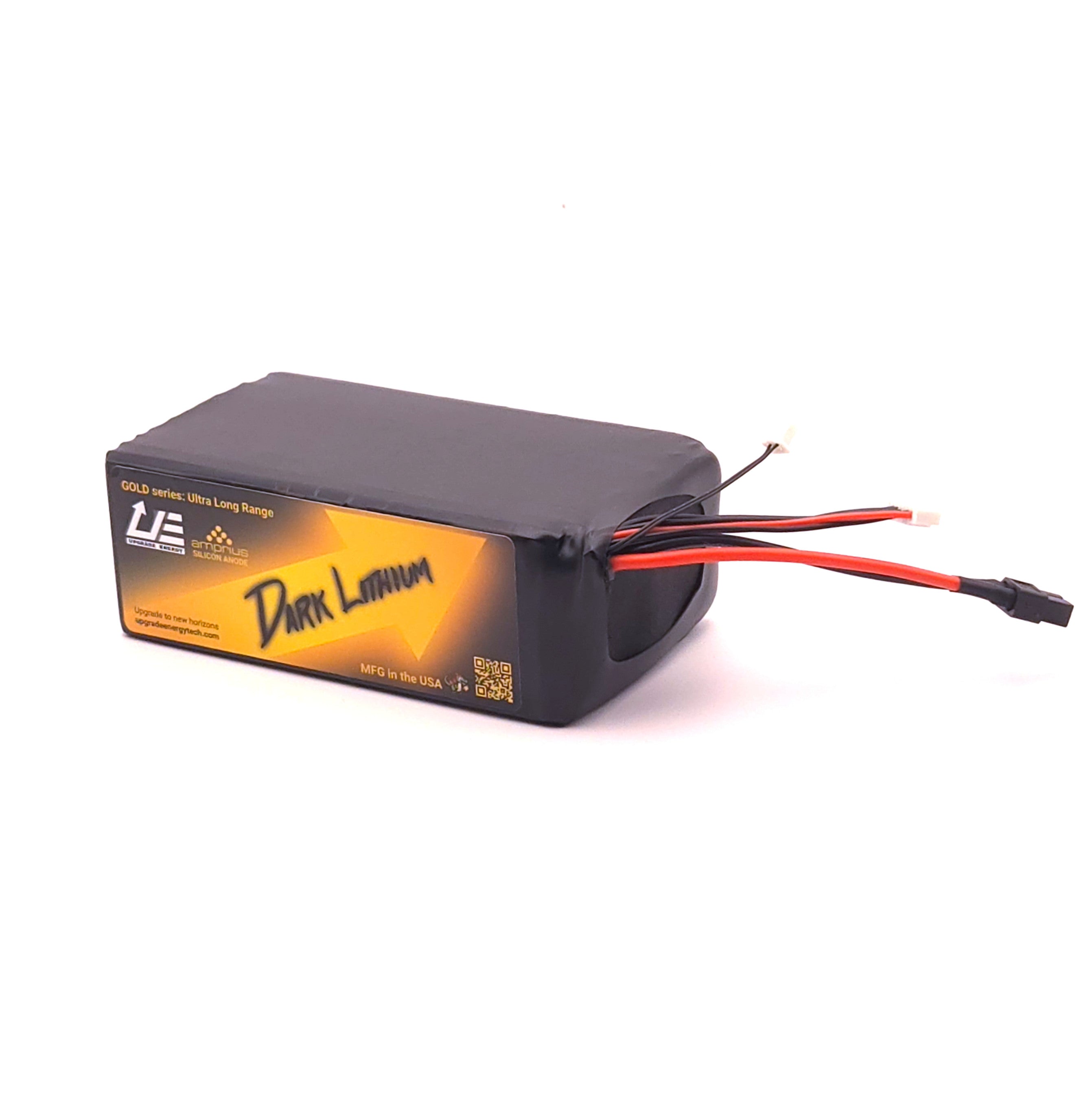

GOLD V1 6S2P 23.7Ah AMPRIUS SA03

SKU: GD0602-AA6010a

$1,320.00

Experience revolutionary flight performance with our GOLD V1 6S2P battery pack, featuring ultra-high energy density Amprius SA03 silicon anode cells engineered specifically for extreme-endurance applications. This cutting-edge powerhouse delivers consistent 475W discharge capability while achieving an extraordinary 378Wh/kg pack energy density - the absolute highest energy density available in commercial drone batteries today.

Perfect for ultra-long-range missions exceeding 45 minutes, extended aerial surveys, and applications where maximum flight time is paramount, this battery provides unparalleled 23.7Ah capacity optimized for low-power, high-endurance platforms. The robust construction features professional-grade XT60 discharge connector, JST-XH balance plug, and integrated NTC temperature sensor for critical thermal management.

Designed exclusively for professional operators with ultra-long-duration mission requirements, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. At 1278g, the revolutionary SA03 chemistry delivers 400Wh/kg cell energy density - representing the absolute cutting edge of battery technology and enabling flight times previously unattainable in the industry.

Important: Requires adequate airflow during use and charging. Always monitor cell temperatures and follow safe charging practices.

Technical Specifications

Electrical Specifications
Capacity 23.7Ah / 483.072 Wh
Gravimetric Energy Density 378.0 Wh/kg
Volumetric Energy Density 717.8 Wh/cm³
Never exceed 70.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions.
Discharge Power
(Cell Spec)
473.28W
Discharge Current
(Cell Spec)
23.2A
Burst Current
(Cell Spec)
69.6A
Charge Rate Normal 7.86A
Charge Rate Maximum 23.68A
Maximum Voltage 25.2V pack / 4.2V per cell
Minimum Voltage 15.3V pack / 2.55V per cell
Storage Voltage 20.4V pack / 3.4V per cell
Landing Voltage 16.2V pack / 2.7V per cell
Physical Specifications
Cell Type Amprius SA03
Configuration 6S2P

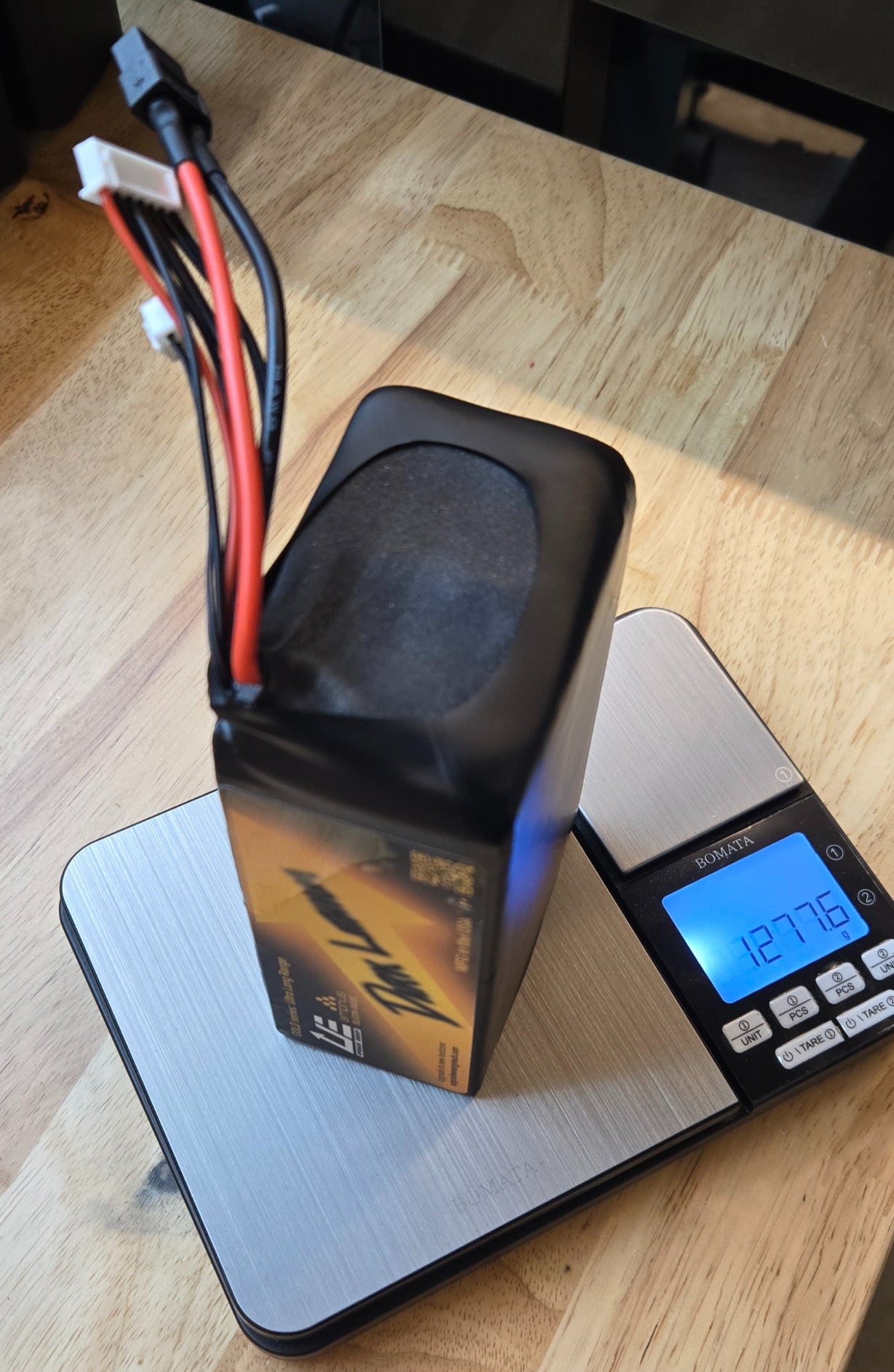

Pack Weight (±3g) 1278 g
Width 8.4 cm / 3.31 inch
Height 5.45 cm / 2.15 inch
Length 14.7 cm / 5.79 inch
Discharge Connector XT60 14AWG
Balance Connector JST-XH-7P, 24AWG
