SKU: GD0601-AA6000a

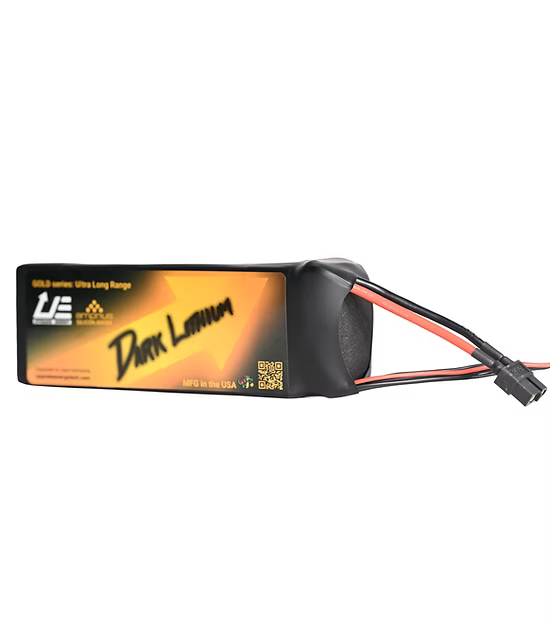

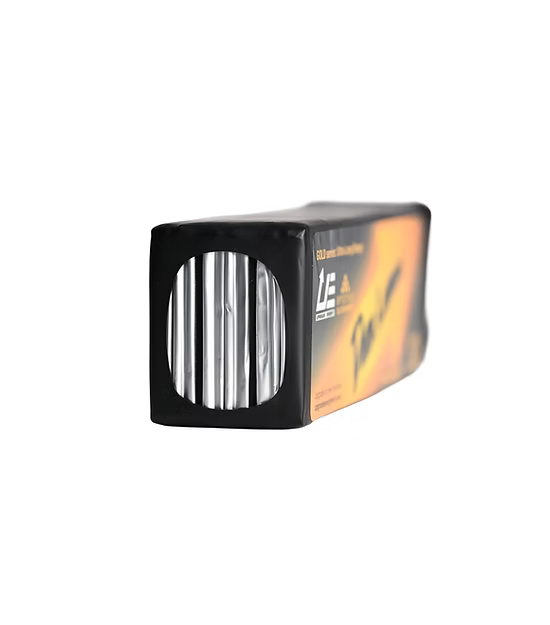

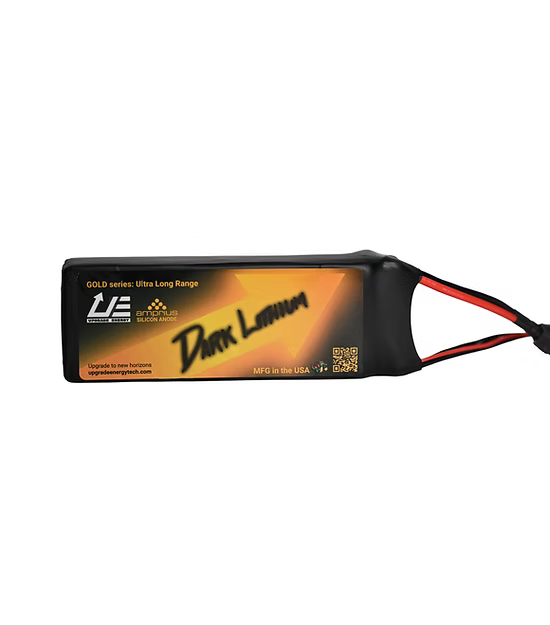

Experience revolutionary flight performance with our GOLD V1 6S1P battery pack, featuring breakthrough Amprius silicon anode technology in a high-voltage configuration. This cutting-edge powerhouse delivers consistent 650W discharge capability while achieving an extraordinary 326Wh/kg pack energy density - combining 6S voltage with unprecedented capacity in a single-parallel design.
Perfect for long-range 6S platforms, extended cinematic missions, and applications requiring both voltage and endurance, this battery provides exceptional flight times without sacrificing 6S punch. The robust construction features professional-grade XT60 discharge connector, JST-XH balance plug, and integrated temperature monitoring for advanced safety management.
Designed for pilots who demand maximum range with high-voltage performance, each pack undergoes rigorous quality testing to ensure peak performance flight after flight. At just 675g, the revolutionary silicon anode technology delivers 10.8Ah capacity in a 6S1P configuration - achieving energy density levels that redefine what's possible for high-voltage drone applications.
Technical Specifications
| Capacity | 11.1Ah / 226.44 Wh |
| Gravimetric Energy Density | 335.5 Wh/kg |
| Volumetric Energy Density | 634.8 Wh/cm³ |
| Never exceed 70.0°C during charge or discharge. Discharge ratings are determined under controlled airflow conditions. | |
|

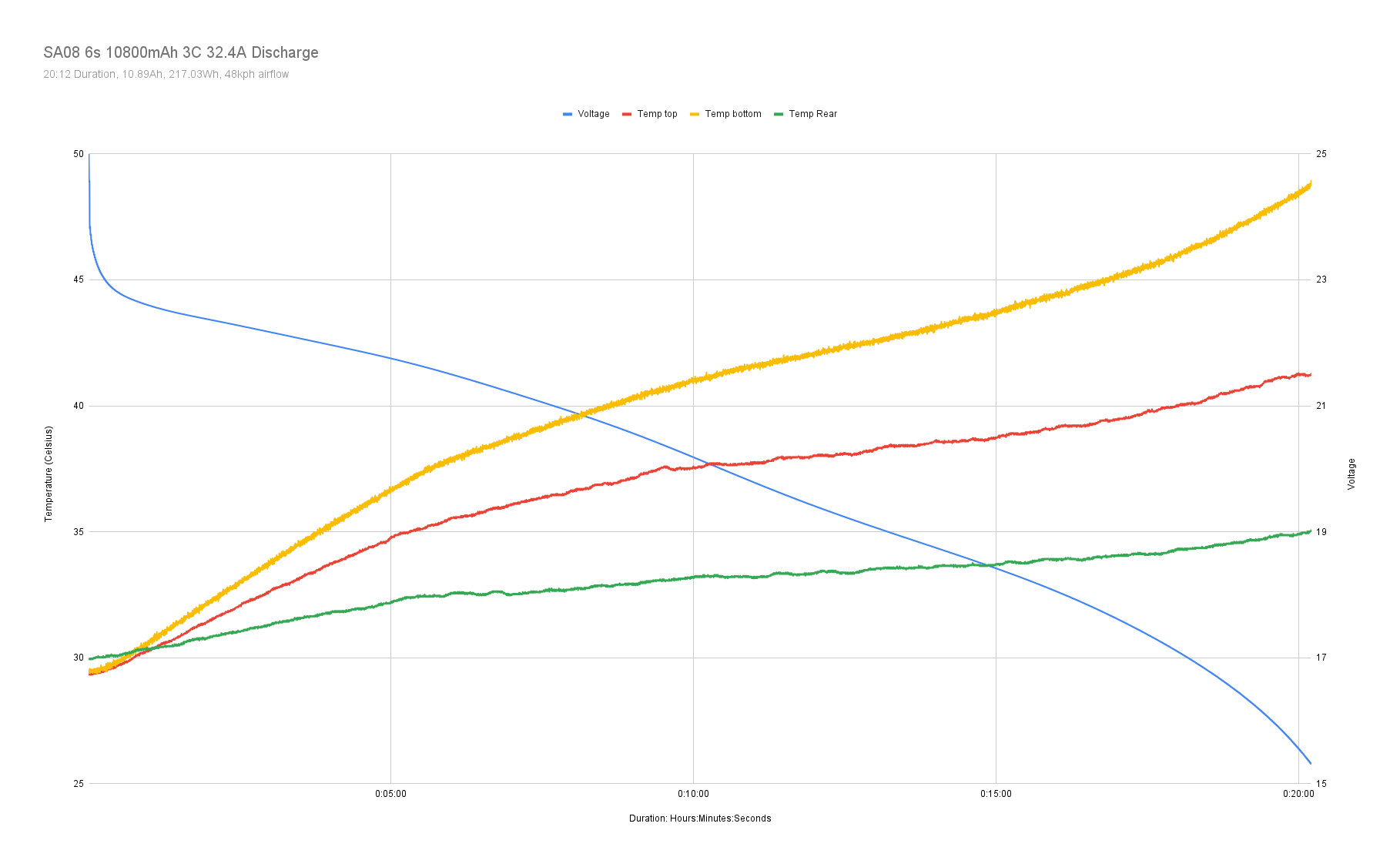

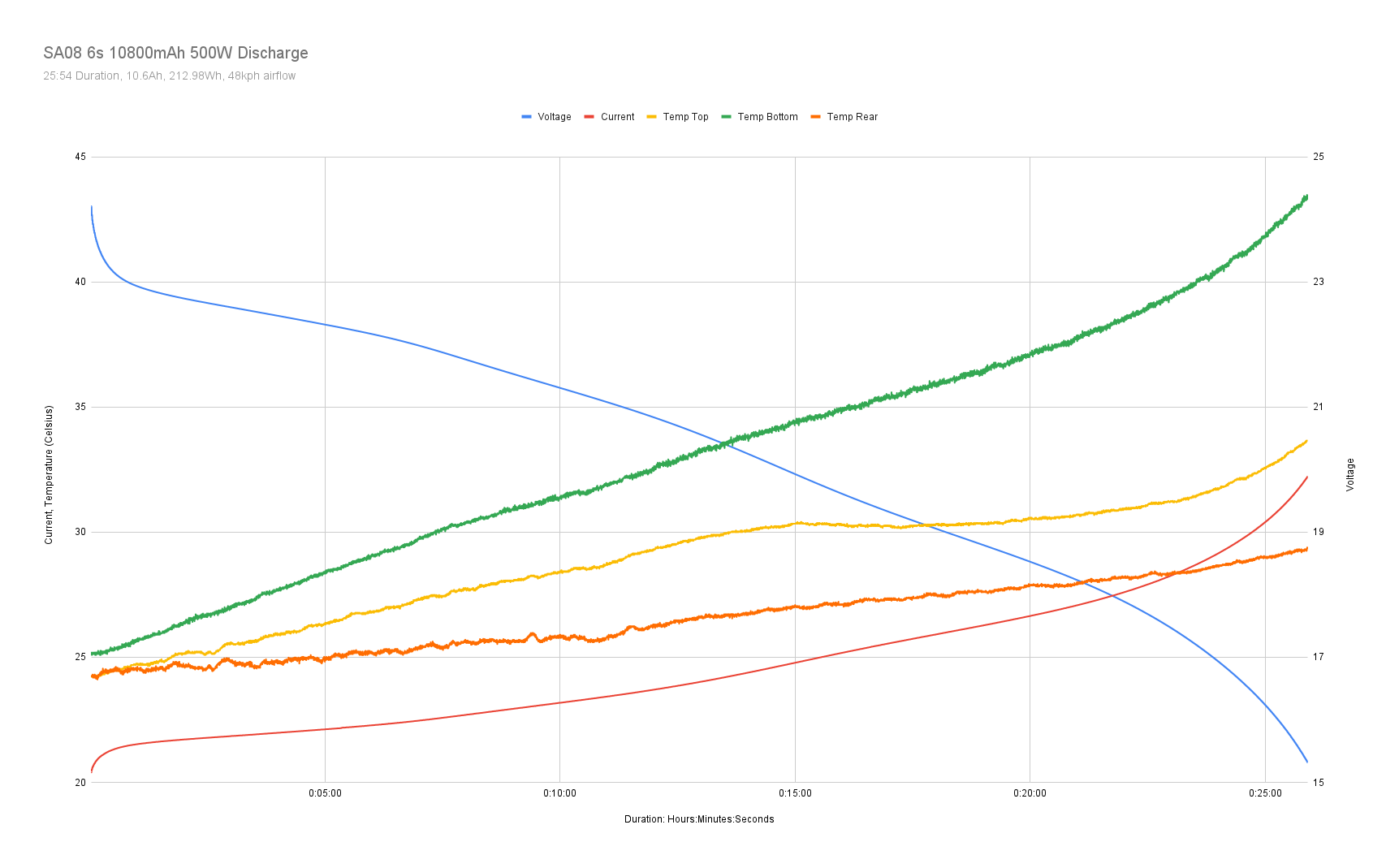

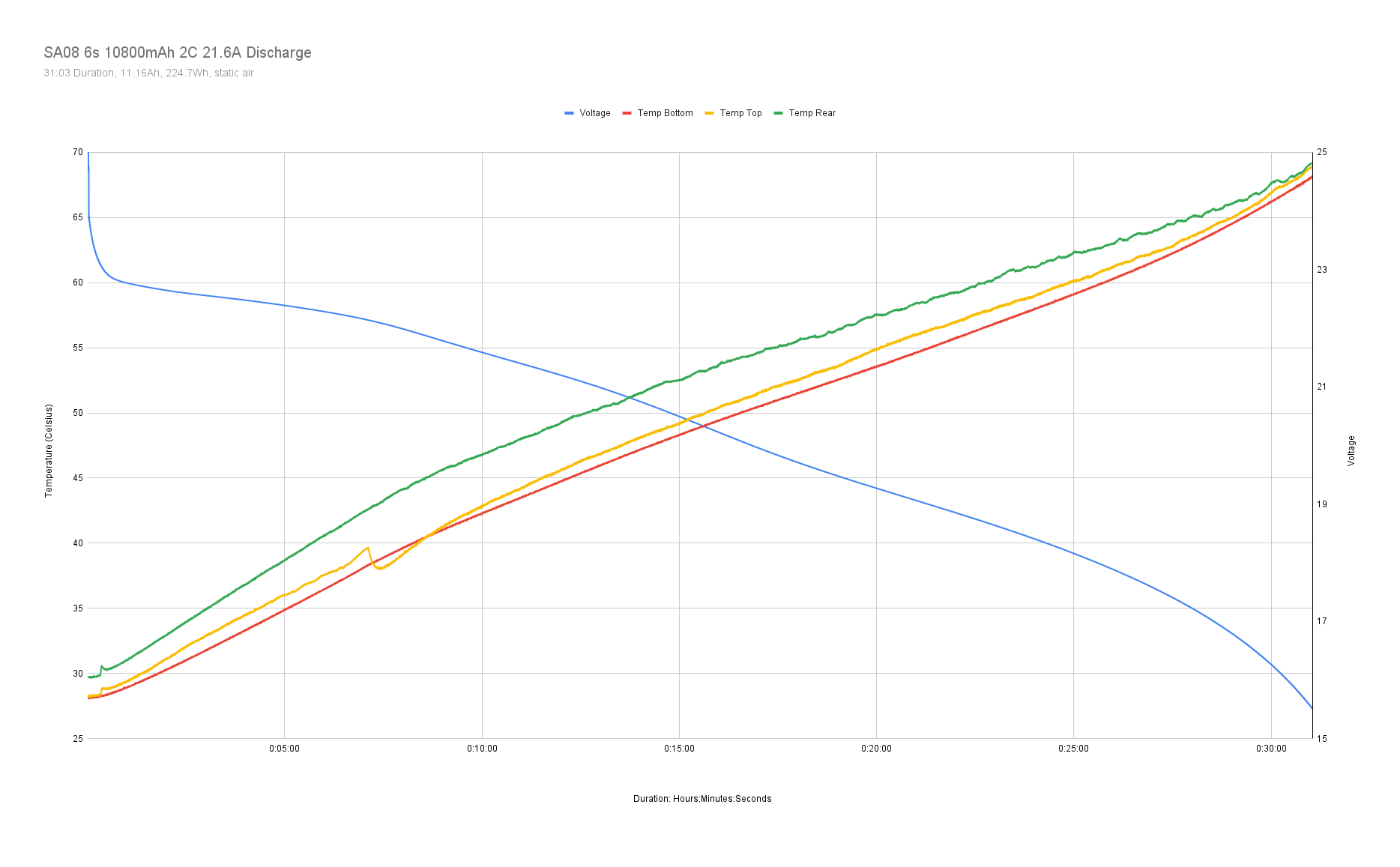

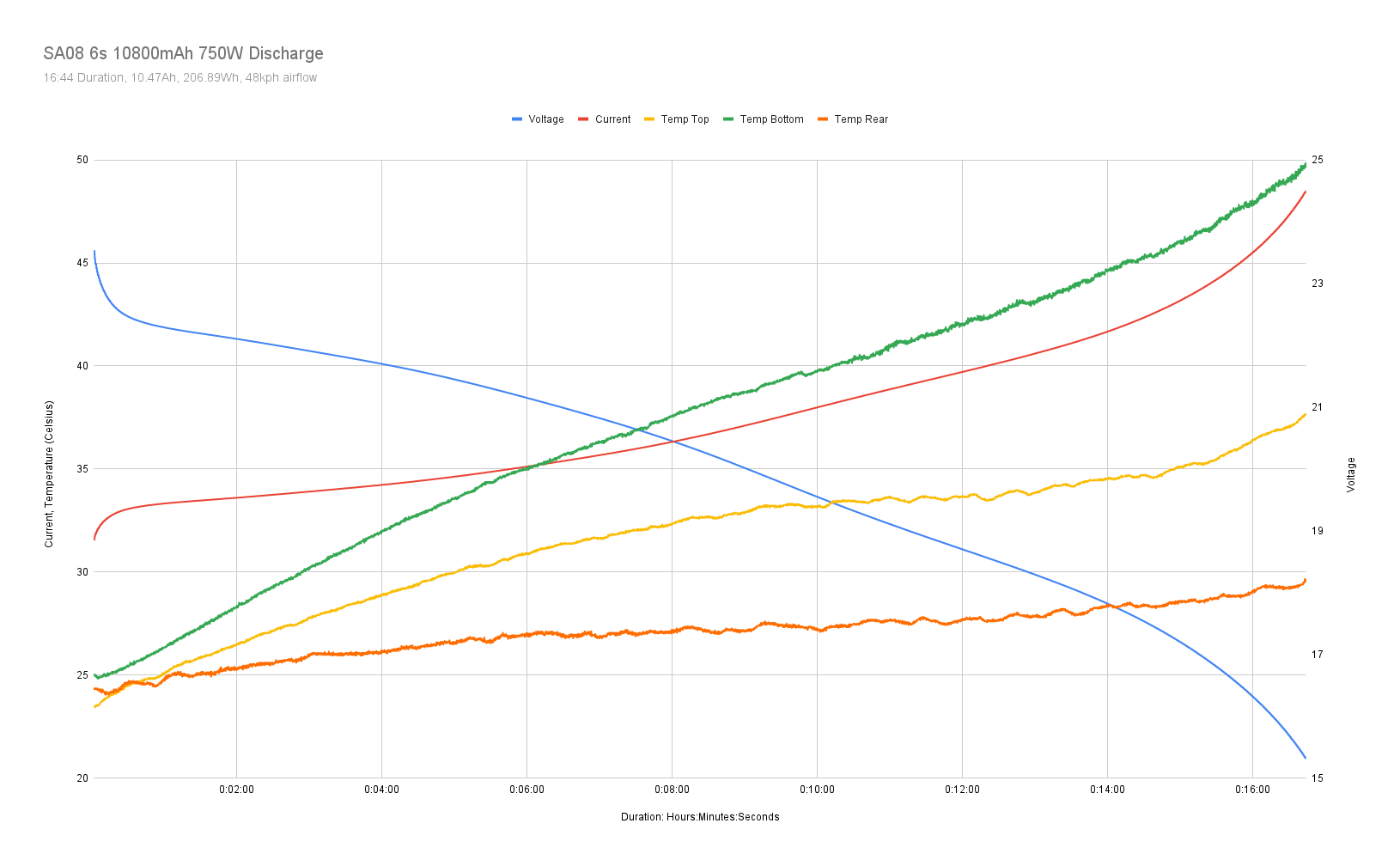

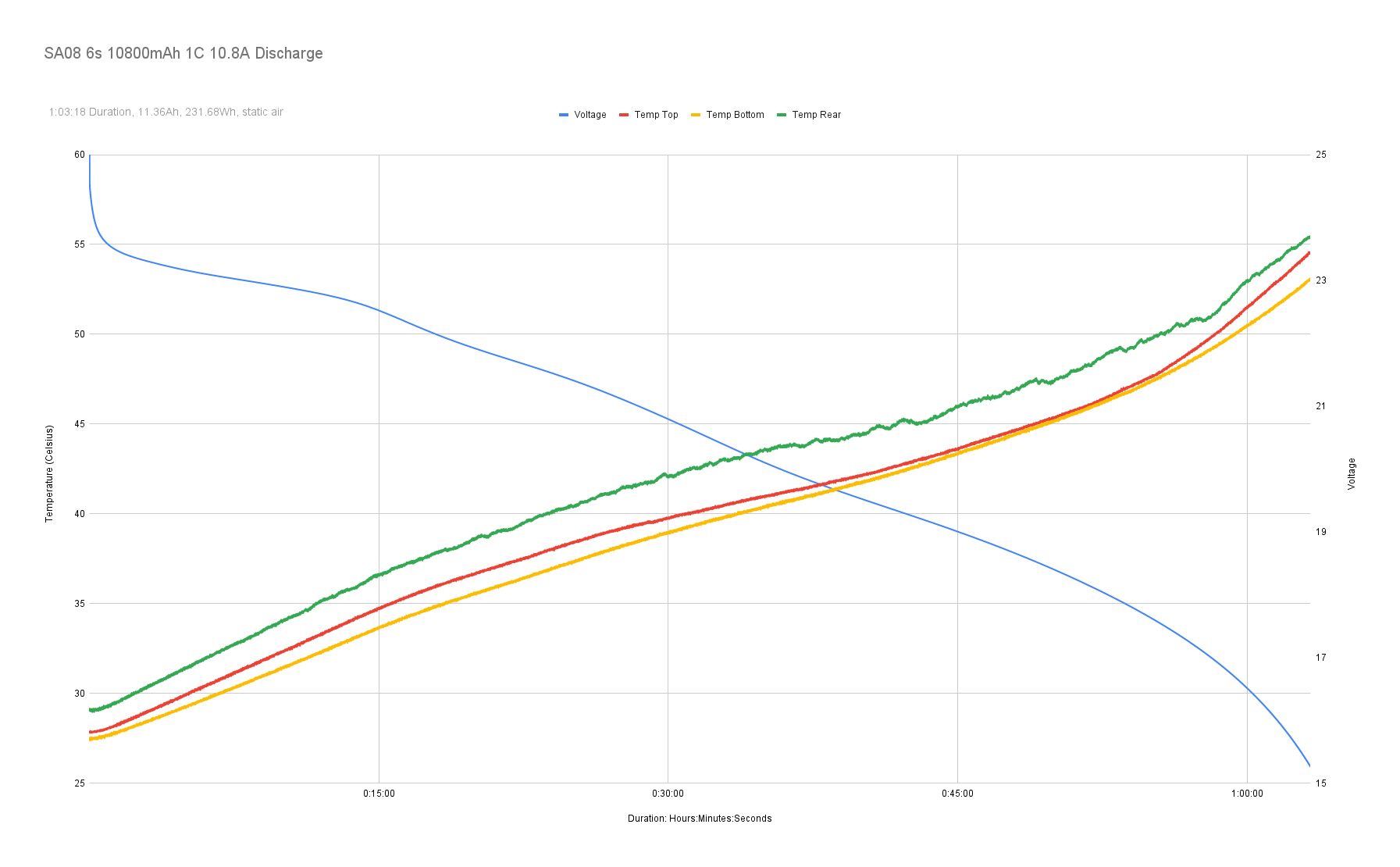

Discharge Power (Cell Spec / Pack Real-World) |
612.0W / 650.0W |
|
Discharge Current (Cell Spec / Pack Real-World) |
30.0A / 30.0A |
|
Burst Current (Cell Spec / Pack Real-World) |
86.0A / 70.0A |
| Charge Rate Normal | 11.1A |
| Charging Notes | Discharge rates subject to airflow and proper cooling. Cell temperature must stay below 70°C during charging and use. |
| Maximum Voltage | 25.2V pack / 4.2V per cell |
| Minimum Voltage | 15.3V pack / 2.55V per cell |
| Storage Voltage | 20.4V pack / 3.4V per cell |
| Landing Voltage | 16.2V pack / 2.7V per cell |
| Cell Type | Amprius SA08 |
| Configuration | 6S1P |
| Pack Weight (±3g) | 675 g |
| Width | 4.9 cm / 1.93 inch |
| Height | 14.0 cm / 5.51 inch |
| Length | 5.2 cm / 2.05 inch |
| Discharge Connector | XT60, 12AWG |
| Balance Connector | JST-XH-7P, 24AWG |
